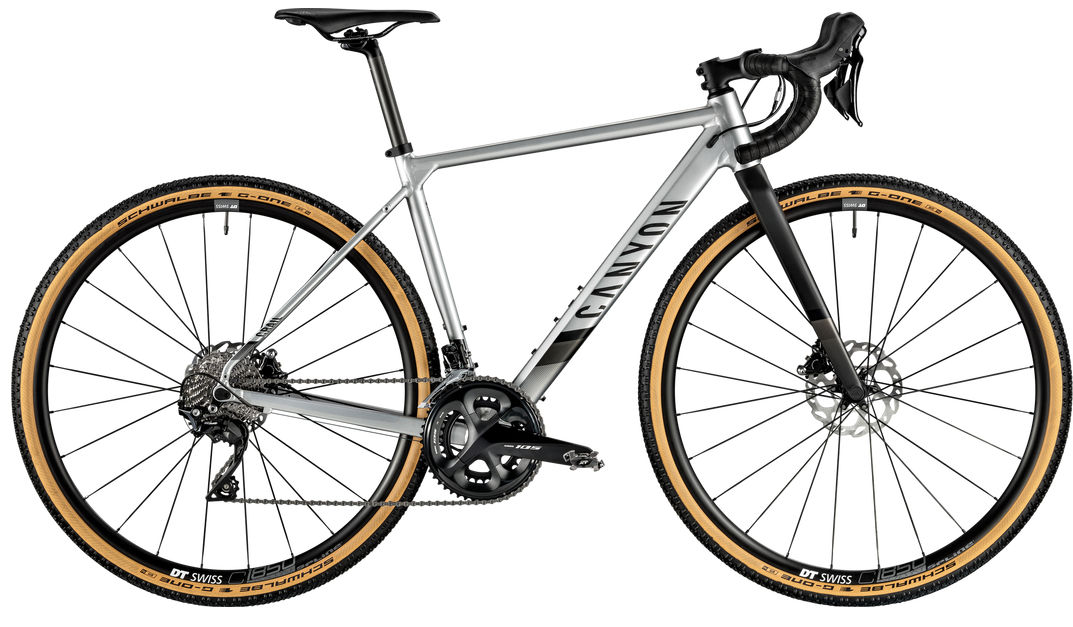

2018 Canyon Grail WMN AL geometry
Full frame geometry for the 2018 Canyon Grail WMN AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 514 | 364 | 73.5 | 70 | 117 | 516 | 432 | 725 | 60 | 576 | 415 | 984 |
| XS | 533 | 373 | 73.5 | 71 | 133 | 531 | 462 | 751 | 60 | 582 | 415 | 990 |
| S | 556 | 390 | 73.5 | 70.2 | 124 | 555 | 492 | 781 | 75 | 608 | 430 | 1027 |
| M | 579 | 405 | 73.5 | 72.2 | 143 | 577 | 522 | 808 | 75 | 616 | 430 | 1035 |
All measurements in millimetres unless marked (°) for angles.
