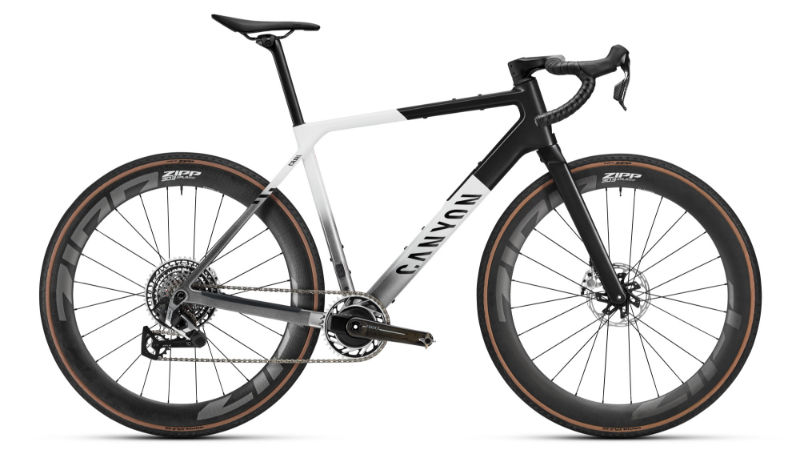

2026 Canyon Grail CFR geometry
Full frame geometry for the 2026 Canyon Grail CFR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 545 | 372 | 73.5 | 69.5 | 123 | 533 | 420 | 745 | 75 | 425 | 1021 |
| XS | 556 | 385 | 73.5 | 71 | 129 | 550 | 450 | 766 | 75 | 425 | 1024 |
| S | 573 | 394 | 73.5 | 71.5 | 145 | 564 | 480 | 789 | 75 | 425 | 1034 |
| M | 591 | 411 | 73.5 | 71.5 | 163 | 586 | 510 | 813 | 75 | 425 | 1057 |
| L | 613 | 427 | 73.5 | 71.5 | 187 | 609 | 540 | 838 | 75 | 425 | 1080 |
| XL | 633 | 435 | 73.5 | 71.8 | 207 | 623 | 570 | 863 | 75 | 425 | 1092 |
| 2XL | 655 | 454 | 73.5 | 71.8 | 230 | 648 | 600 | 901 | 75 | 425 | 1118 |
All measurements in millimetres unless marked (°) for angles.
