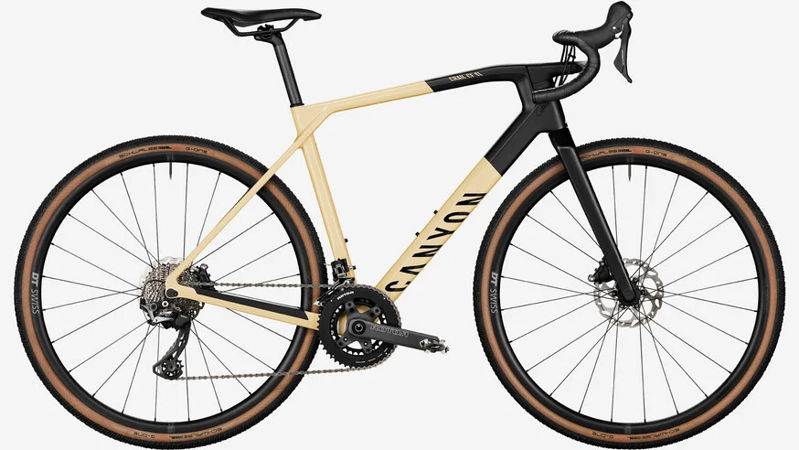

2023 Canyon Grail CF SL 7 geometry
Full frame geometry for the 2023 Canyon Grail CF SL 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|
| 2XS | 470 | 384 | 73.5 | 70.3 | 70 | 513 | 415 | 60 |
| XS | 490 | 388 | 73.5 | 71.3 | 88 | 523 | 415 | 60 |
| S | 513 | 405 | 73.5 | 71 | 78 | 547 | 425 | 75 |
| M | 536 | 421 | 73.5 | 72.5 | 97 | 569 | 425 | 75 |
| L | 563 | 423 | 73.5 | 72.5 | 125 | 580 | 425 | 75 |
| XL | 584 | 441 | 73.5 | 72.8 | 146 | 604 | 425 | 75 |
| 2XL | 604 | 466 | 73.5 | 72.8 | 167 | 615 | 425 | 75 |
All measurements in millimetres unless marked (°) for angles.
