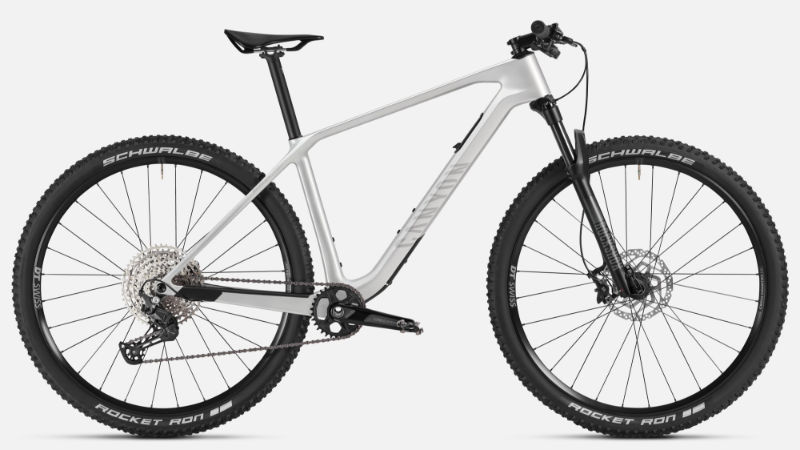

2025 Canyon Exceed CF geometry
Full frame geometry for the 2025 Canyon Exceed CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 600 | 408 | 75 | 67 | 90 | 569 | 350 | 769 | 58 | 425 | 1111 | 51 |
| S | 604 | 425 | 75 | 67 | 95 | 587 | 390 | 794 | 58 | 425 | 1130 | 51 |
| M | 613 | 447 | 75 | 67 | 105 | 611 | 430 | 820 | 58 | 425 | 1156 | 51 |
| L | 632 | 465 | 75 | 67 | 125 | 634 | 470 | 850 | 58 | 430 | 1186 | 51 |
| XL | 646 | 485 | 75 | 67 | 140 | 658 | 510 | 877 | 58 | 435 | 1217 | 51 |
All measurements in millimetres unless marked (°) for angles.
