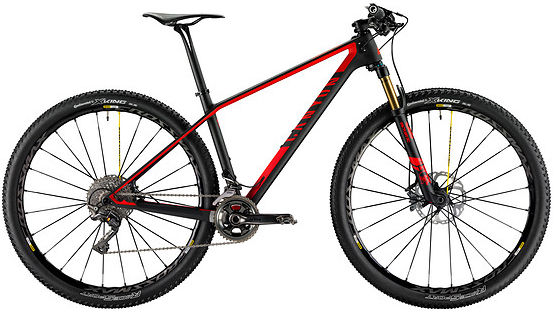

2017 Canyon Exceed CF SLX geometry
Full frame geometry for the 2017 Canyon Exceed CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 575 | 375 | 74 | 69.5 | 90 | 540 | 350 | 726 | 48 | 422 | 1041 |
| S | 604 | 395 | 74 | 69.5 | 90 | 568 | 395 | 763 | 65 | 427 | 1070 |
| M | 611 | 425 | 74 | 69.5 | 100 | 600 | 440 | 791 | 63 | 427 | 1104 |
| L | 625 | 441 | 74 | 69.5 | 115 | 620 | 485 | 822 | 63 | 432 | 1130 |
| XL | 653 | 463 | 74 | 69.5 | 145 | 650 | 545 | 866 | 63 | 437 | 1168 |
All measurements in millimetres unless marked (°) for angles.
