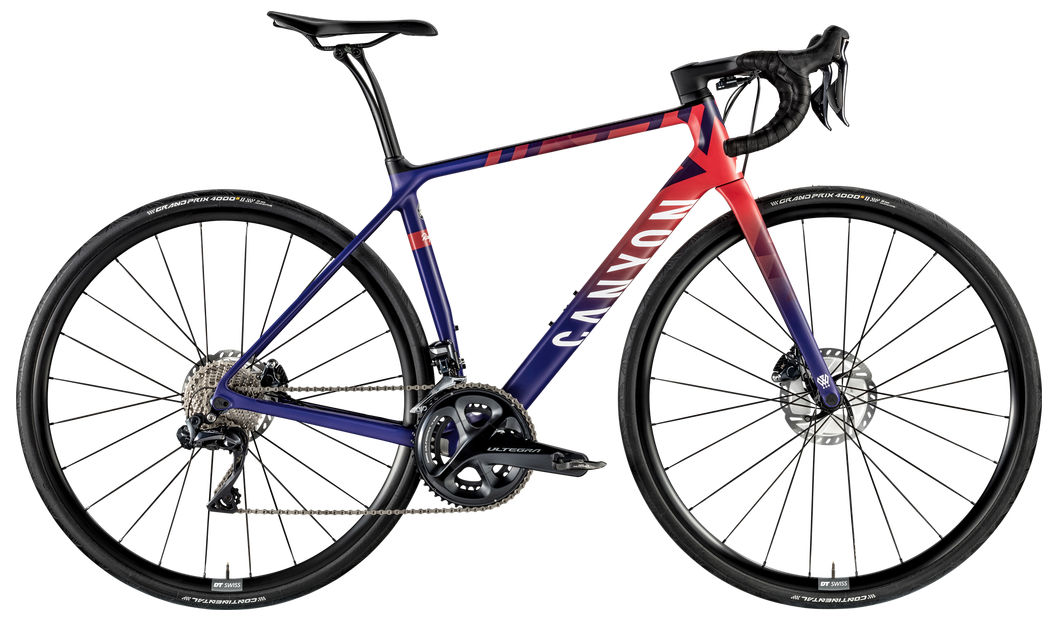

2018 Canyon Endurace WMN CF SL Disc geometry
Full frame geometry for the 2018 Canyon Endurace WMN CF SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3XS | 502 | 346 | 73.5 | 70 | 109 | 492 | 402 | 685 | 63 | 554 | 415 | 961 |
| 2XS | 515 | 349 | 73.5 | 70.8 | 129 | 502 | 432 | 711 | 63 | 558 | 415 | 965 |
| XS | 538 | 362 | 73.5 | 70.2 | 124 | 522 | 462 | 746 | 75 | 580 | 415 | 983 |
| S | 561 | 369 | 73.5 | 71.5 | 143 | 537 | 492 | 774 | 75 | 586 | 415 | 989 |
| M | 584 | 378 | 73.5 | 72.5 | 164 | 551 | 522 | 801 | 75 | 593 | 415 | 996 |
All measurements in millimetres unless marked (°) for angles.
