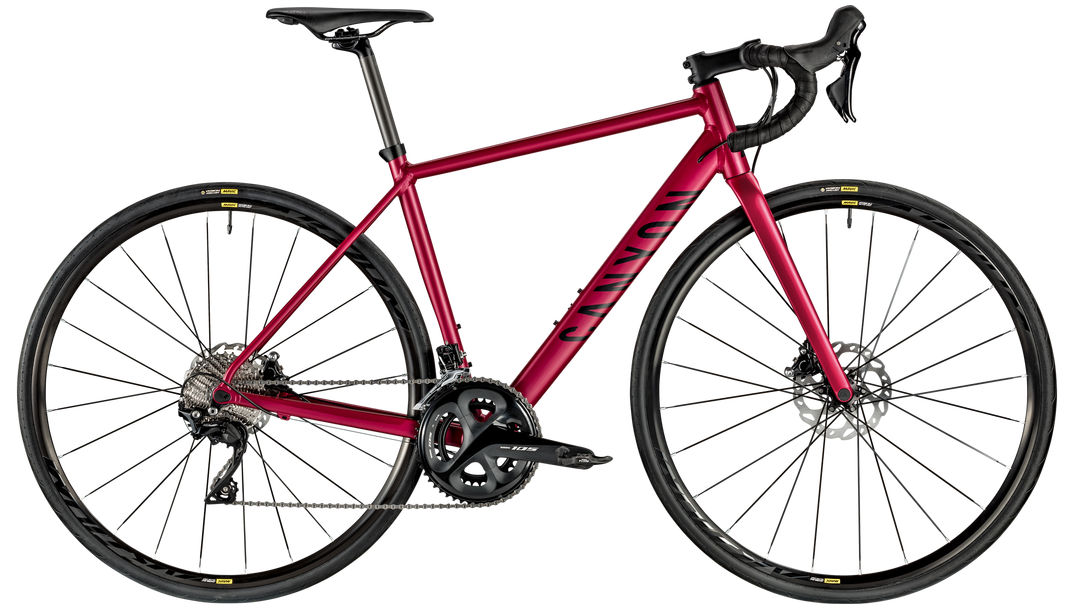

2018 Canyon Endurace WMN AL Disc geometry
Full frame geometry for the 2018 Canyon Endurace WMN AL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3XS | 502 | 347 | 73.5 | 70 | 118 | 495 | 402 | 683 | 63 | 554 | 415 | 961 |
| 2XS | 524 | 349 | 73.5 | 70.8 | 138 | 504 | 432 | 709 | 63 | 558 | 415 | 965 |
| XS | 546 | 359 | 73.5 | 71 | 133 | 521 | 462 | 742 | 75 | 580 | 415 | 983 |
| S | 570 | 369 | 73.5 | 72 | 152 | 537 | 492 | 769 | 75 | 586 | 415 | 989 |
| M | 593 | 378 | 73.5 | 72.5 | 173 | 554 | 522 | 796 | 75 | 593 | 415 | 996 |
All measurements in millimetres unless marked (°) for angles.
