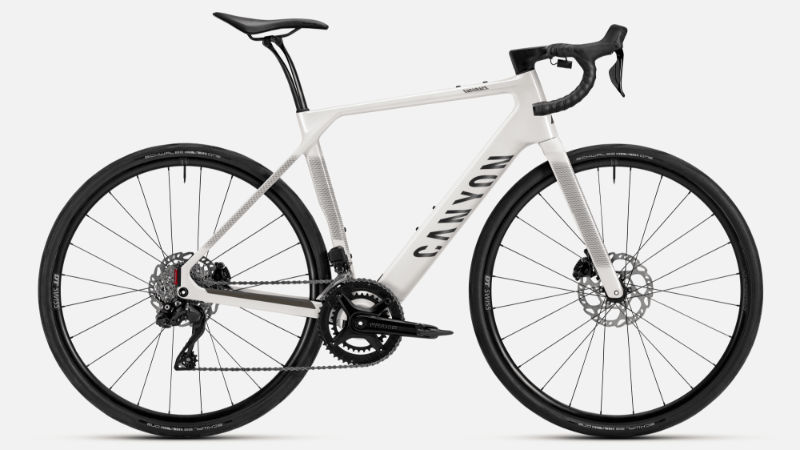

2026 Canyon Endurace:ONfly CF geometry
Full frame geometry for the 2026 Canyon Endurace:ONfly CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 529 | 370 | 73.5 | 70.1 | 111 | 517 | 432 | 740 | 73 | 420 | 995 |
| XS | 548 | 370 | 73.5 | 70.3 | 130 | 522 | 462 | 764 | 73 | 420 | 1000 |
| S | 568 | 385 | 73.5 | 71.5 | 147 | 543 | 492 | 789 | 73 | 420 | 1011 |
| M | 590 | 388 | 73.5 | 72 | 167 | 553 | 522 | 813 | 73 | 420 | 1016 |
| L | 611 | 397 | 73.5 | 72.3 | 189 | 568 | 552 | 838 | 73 | 420 | 1029 |
| XL | 637 | 415 | 73.5 | 72.3 | 216 | 594 | 582 | 864 | 73 | 420 | 1055 |
| 2XL | 656 | 425 | 73.5 | 72.5 | 235 | 609 | 612 | 887 | 73 | 420 | 1068 |
All measurements in millimetres unless marked (°) for angles.
