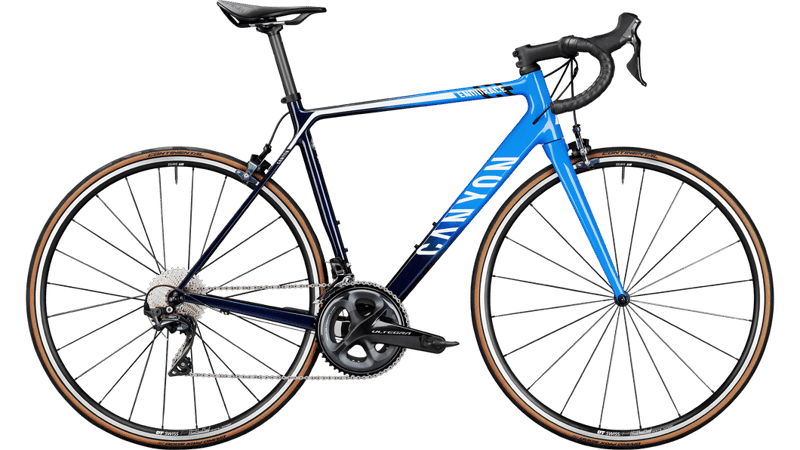

2021 Canyon Endurace CF 8 geometry
Full frame geometry for the 2021 Canyon Endurace CF 8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 541 | 366 | 73.5 | 70.9 | 127 | 526 | 475 | 743 | 75 | 415 | 979 |
| S | 556 | 373 | 73.5 | 71.6 | 143 | 538 | 510 | 767 | 73 | 415 | 986 |
| M | 571 | 378 | 73.5 | 72.4 | 159 | 547 | 545 | 796 | 70 | 415 | 989 |
| L | 590 | 380 | 73.5 | 73.3 | 175 | 555 | 556 | 815 | 70 | 415 | 989 |
| XL | 610 | 395 | 73.5 | 73.3 | 196 | 576 | 595 | 839 | 70 | 415 | 1010 |
| 2XL | 628 | 400 | 73.5 | 73.3 | 215 | 586 | 620 | 860 | 70 | 415 | 1020 |
All measurements in millimetres unless marked (°) for angles.
