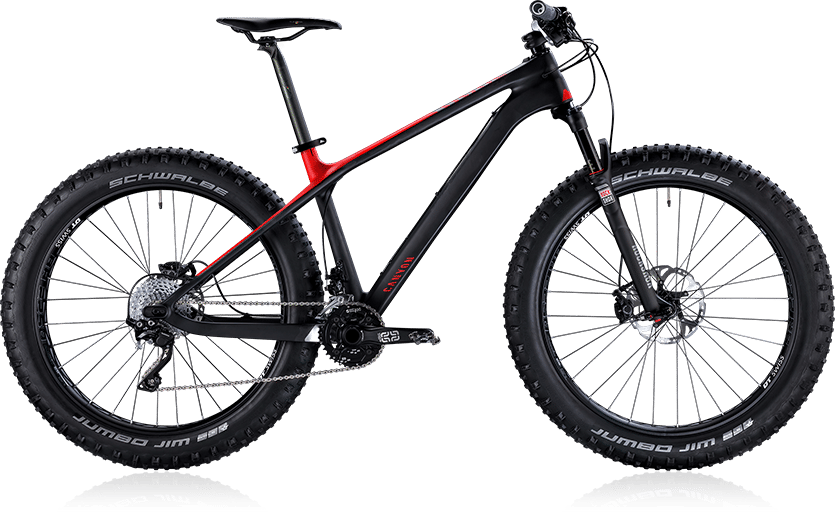

2015 Canyon Dude CF - Bluto geometry
Full frame geometry for the 2015 Canyon Dude CF - Bluto, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 395 | 74 | 68.5 | 95 | 569 | 390 | 839 | 60 | 439 | 1104 |
| M | 628 | 425 | 74 | 68.5 | 120 | 605 | 445 | 879 | 60 | 439 | 1142 |
| L | 652 | 455 | 74 | 68.5 | 145 | 642 | 490 | 914 | 60 | 439 | 1182 |
All measurements in millimetres unless marked (°) for angles.
