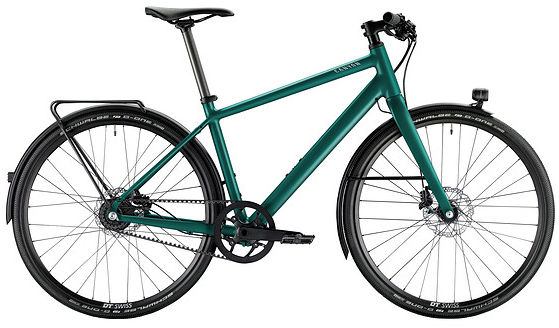

2017 Canyon Commuter geometry
Full frame geometry for the 2017 Canyon Commuter, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 388 | 73.5 | 72 | 117 | 547 | 365 | 729 | 68 | 410 | 997 |
| S | 555 | 402 | 73.5 | 72 | 136 | 566 | 400 | 756 | 68 | 410 | 1017 |
| M | 578 | 414 | 73.5 | 72 | 160 | 585 | 440 | 789 | 68 | 410 | 1036 |
| L | 610 | 435 | 73.5 | 72 | 193 | 616 | 485 | 828 | 68 | 410 | 1068 |
| XL | 645 | 462 | 73.5 | 72 | 230 | 653 | 535 | 872 | 68 | 410 | 1106 |
All measurements in millimetres unless marked (°) for angles.
