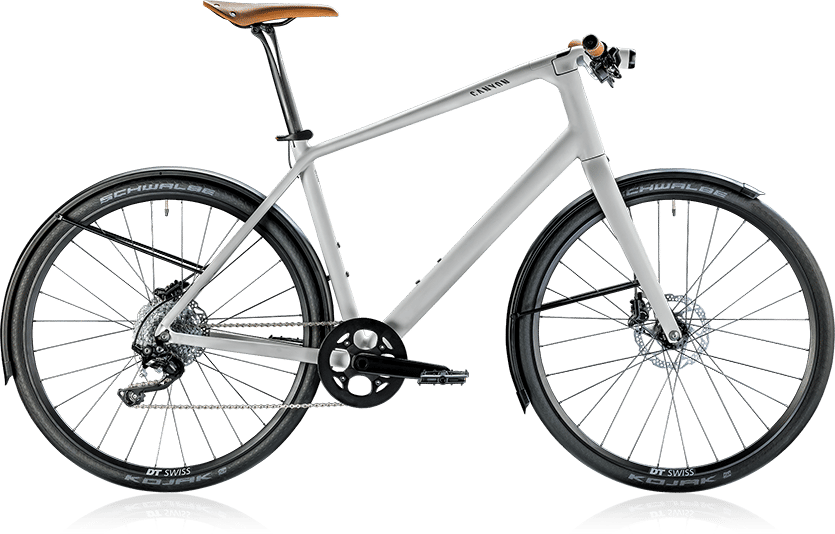

2015 Canyon Commuter SL geometry
Full frame geometry for the 2015 Canyon Commuter SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 546 | 391 | 73.5 | 72 | 125 | 550 | 390 | 789 | 30 | 410 | 1000 |
| M | 575 | 415 | 73.5 | 72 | 155 | 585 | 440 | 830 | 30 | 410 | 1036 |
| L | 599 | 433 | 73.5 | 72 | 175 | 600 | 485 | 865 | 30 | 410 | 1051 |
| XL | 613 | 458 | 73.5 | 72 | 195 | 625 | 535 | 898 | 30 | 410 | 1077 |
All measurements in millimetres unless marked (°) for angles.
