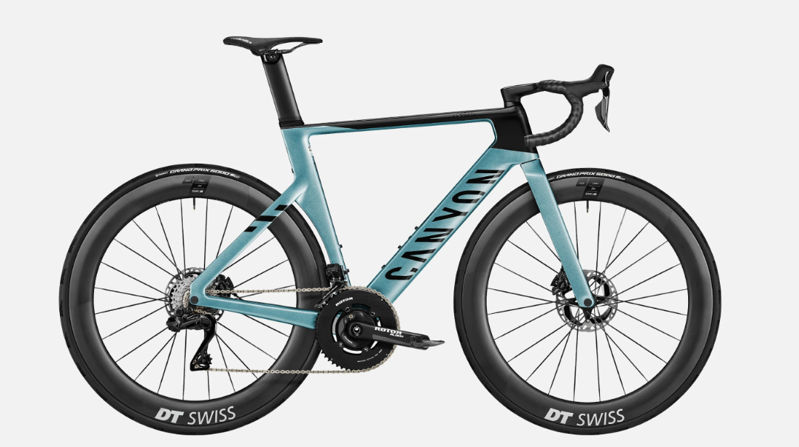

2023 Canyon Aeroad CFR Disc LTD geometry
Full frame geometry for the 2023 Canyon Aeroad CFR Disc LTD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS | 498 | 372 | 73.5 | 70.5 | 89 | 520 | 443 | 733 | 72 | 410 | 972 |
| XS | 521 | 378 | 73.5 | 71.5 | 109 | 533 | 473 | 759 | 72 | 410 | 977 |
| S | 539 | 390 | 73.5 | 72.8 | 126 | 549 | 503 | 785 | 70 | 410 | 984 |
| M | 560 | 393 | 73.5 | 73.3 | 147 | 559 | 533 | 810 | 70 | 410 | 989 |
| L | 580 | 401 | 73.5 | 73.3 | 167 | 572 | 563 | 834 | 70 | 410 | 1 |
| XL | 606 | 419 | 73.5 | 73.5 | 193 | 598 | 593 | 860 | 70 | 410 | 1 |
All measurements in millimetres unless marked (°) for angles.
