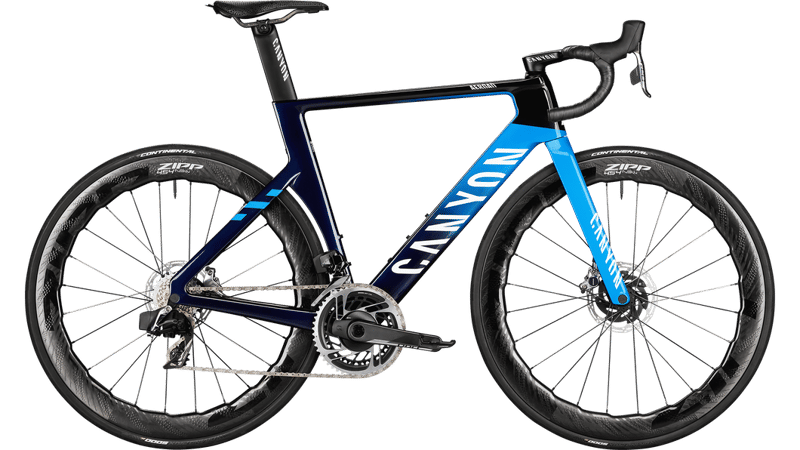

2021 Canyon Aeroad CFR/ CF SLX geometry
Full frame geometry for the 2021 Canyon Aeroad CFR/ CF SLX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2XS | 498 | 372 | 73.5 | 70.5 | 89 | 520 | 443 | 410 | 972 |
| XS | 521 | 378 | 73.5 | 71.5 | 109 | 533 | 473 | 410 | 977 |
| S | 539 | 390 | 73.5 | 72.8 | 126 | 549 | 503 | 410 | 984 |
| M | 560 | 393 | 73.5 | 73.3 | 147 | 559 | 533 | 410 | 989 |
| L | 580 | 401 | 73.5 | 73.3 | 167 | 572 | 563 | 410 | 1002 |
| XL | 606 | 419 | 73.5 | 73.5 | 193 | 598 | 593 | 410 | 1025 |
| 2XL | 624 | 429 | 73.5 | 73.8 | 211 | 613 | 623 | 410 | 1038 |
All measurements in millimetres unless marked (°) for angles.
