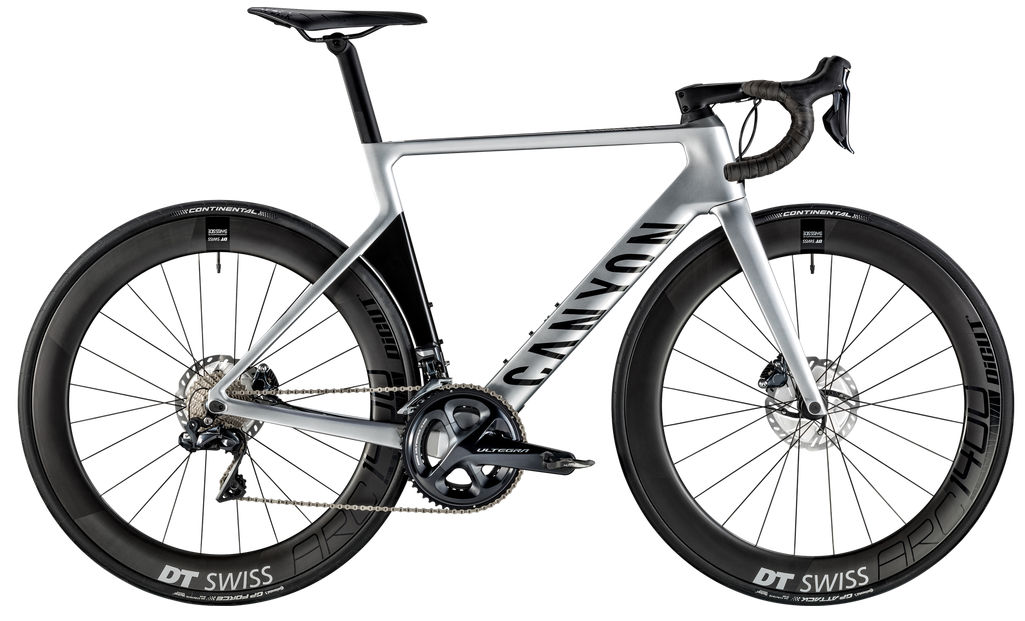

2018 Canyon Aeroad CF SL Disc geometry
Full frame geometry for the 2018 Canyon Aeroad CF SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2XS/47 | 494 | 363 | 73.5 | 69.5 | 100 | 509 | 465 | 740 | 70 | 570 | 415 | 975 |
| XS/50 | 512 | 376 | 73.5 | 72 | 110 | 528 | 489 | 758 | 70 | 573 | 415 | 978 |
| S/53 | 533 | 391 | 73.5 | 72.8 | 130 | 549 | 508 | 781 | 70 | 582 | 415 | 987 |
| M/56 | 550 | 397 | 73.5 | 73.3 | 147 | 560 | 531 | 798 | 70 | 589 | 415 | 994 |
| L/58 | 570 | 403 | 73.5 | 73.3 | 167 | 572 | 551 | 818 | 70 | 601 | 415 | 1006 |
| XL/60 | 592 | 417 | 73.5 | 73.5 | 190 | 592 | 568 | 840 | 70 | 618 | 415 | 1023 |
| 2XL/62 | 612 | 423 | 73.5 | 73.8 | 210 | 604 | 587 | 861 | 70 | 633 | 415 | 1038 |
All measurements in millimetres unless marked (°) for angles.
