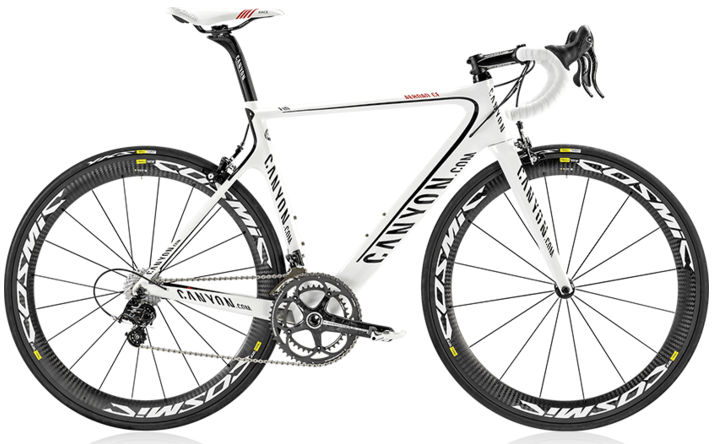

2013 Canyon Aeroad CF MKI geometry
Full frame geometry for the 2013 Canyon Aeroad CF MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 374 | 73.5 | 72 | 110 | 527 | 489 | 768 | 70 | 561 | 410 | 963 | 43 | 63 |
| S | 534 | 386 | 73.5 | 72.8 | 130 | 545 | 508 | 788 | 70 | 573 | 410 | 975 | 43 | 59 |
| M | 555 | 396 | 73.5 | 73.3 | 150 | 560 | 531 | 811 | 70 | 585 | 410 | 986 | 43 | 56 |
| L | 574 | 405 | 73.5 | 73.3 | 170 | 575 | 551 | 831 | 70 | 600 | 410 | 1001 | 43 | 56 |
| XL | 593 | 415 | 73.5 | 73.3 | 190 | 590 | 568 | 849 | 70 | 615 | 410 | 1017 | 43 | 56 |
| XXL | 612 | 424 | 73.5 | 73.3 | 210 | 606 | 587 | 868 | 70 | 630 | 410 | 1032 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
