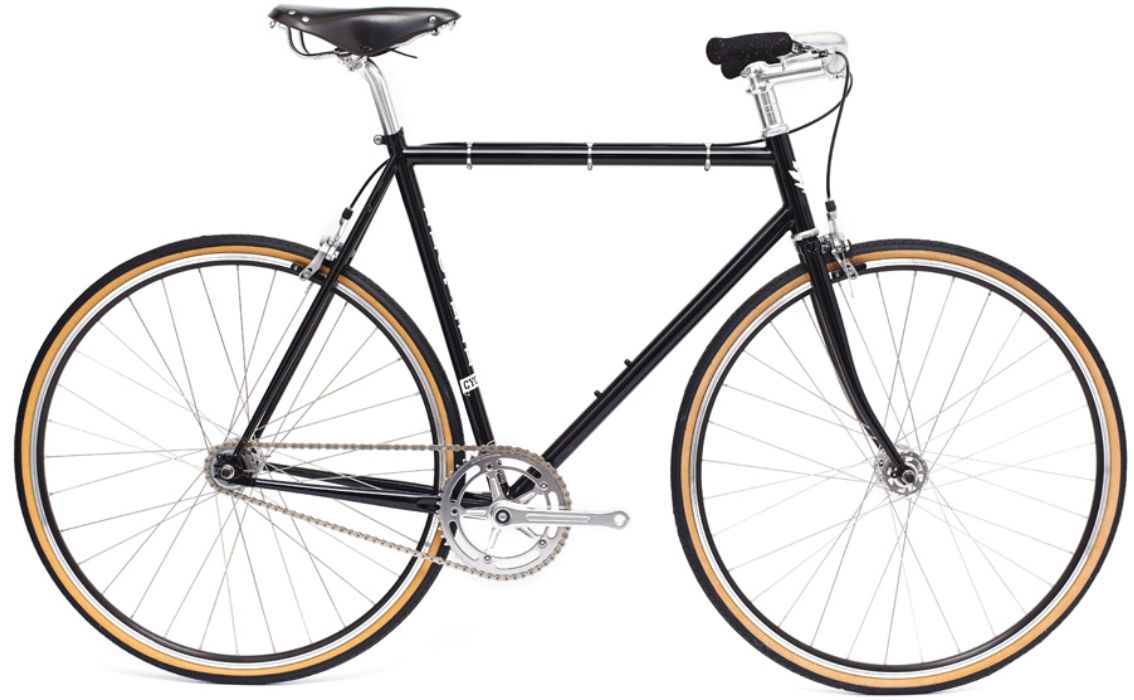

2018 Brother Cycles The Allday geometry
Full frame geometry for the 2018 Brother Cycles The Allday, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 509 | 389 | 74.5 | 72 | 111 | 530 | 505 | 791 | 60 | 578 | 400 | 971 | 40 | 70 |
| 54 | 527 | 394 | 74 | 72.5 | 128 | 545 | 525 | 811 | 60 | 584 | 400 | 977 | 40 | 67 |
| 56 | 545 | 399 | 73.5 | 73 | 145 | 560 | 545 | 831 | 60 | 590 | 400 | 982 | 40 | 64 |
| 58 | 564 | 403 | 73.5 | 73 | 165 | 570 | 565 | 851 | 60 | 600 | 400 | 993 | 40 | 64 |
| 60 | 583 | 412 | 73.5 | 73 | 185 | 585 | 585 | 871 | 60 | 615 | 400 | 1008 | 40 | 64 |
All measurements in millimetres unless marked (°) for angles.
