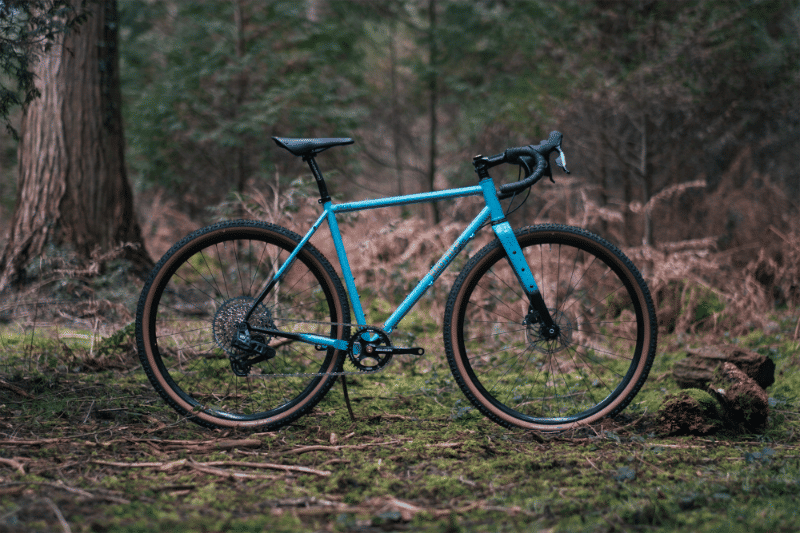

2026 Brother Cycles Mehteh geometry
Full frame geometry for the 2026 Brother Cycles Mehteh, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 545 | 369 | 74 | 70.5 | 110 | 525 | 490 | 70 | 430 | 1009 | 47 |
| S | 561 | 378 | 73.5 | 71 | 125 | 544 | 510 | 70 | 430 | 1019 | 47 |
| M | 577 | 385 | 73 | 71.5 | 140 | 561 | 530 | 70 | 430 | 1026 | 47 |
| L | 596 | 394 | 73 | 71.5 | 160 | 576 | 550 | 70 | 430 | 1042 | 47 |
| XL | 615 | 403 | 73 | 71.5 | 180 | 591 | 570 | 70 | 430 | 1057 | 47 |
| XXL | 634 | 412 | 73 | 71.5 | 200 | 606 | 590 | 70 | 430 | 1073 | 47 |
All measurements in millimetres unless marked (°) for angles.
