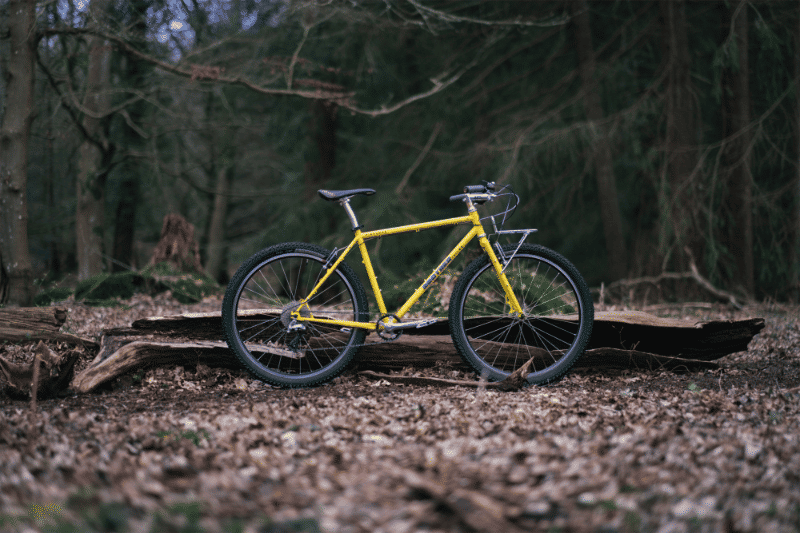

2026 Brother Cycles Pinecone geometry
Full frame geometry for the 2026 Brother Cycles Pinecone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 538 | 389 | 72 | 70 | 100 | 564 | 450 | 55 | 440 | 1049 | 45 |
| M | 553 | 405 | 72 | 70 | 115 | 584 | 500 | 55 | 440 | 1070 | 45 |
| L | 567 | 415 | 72 | 70 | 130 | 599 | 550 | 55 | 440 | 1086 | 45 |
| XL | 590 | 422 | 72 | 70 | 155 | 614 | 600 | 55 | 440 | 1102 | 45 |
All measurements in millimetres unless marked (°) for angles.
