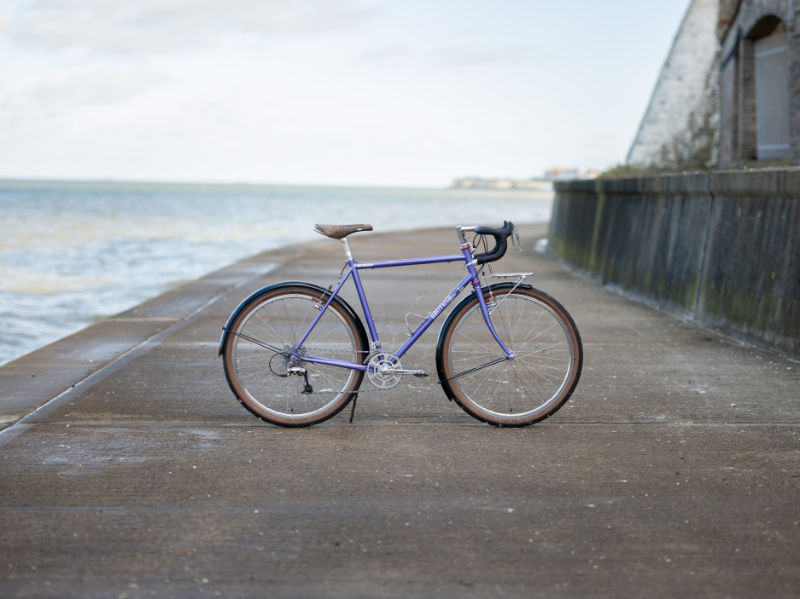

2026 Brother Cycles Mr Wooden geometry
Full frame geometry for the 2026 Brother Cycles Mr Wooden, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 535 | 372 | 73.5 | 72.5 | 120 | 530 | 515 | 766 | 65 | 435 | 1008 | 55 |
| 54 | 555 | 375 | 73 | 73 | 140 | 545 | 535 | 786 | 65 | 435 | 1013 | 55 |
| 56 | 575 | 384 | 73 | 73 | 160 | 560 | 555 | 805 | 65 | 435 | 1028 | 55 |
| 58 | 594 | 399 | 73 | 73 | 180 | 580 | 575 | 823 | 65 | 435 | 1048 | 55 |
| 60 | 613 | 401 | 72 | 73 | 200 | 600 | 595 | 842 | 65 | 435 | 1056 | 55 |
All measurements in millimetres unless marked (°) for angles.
