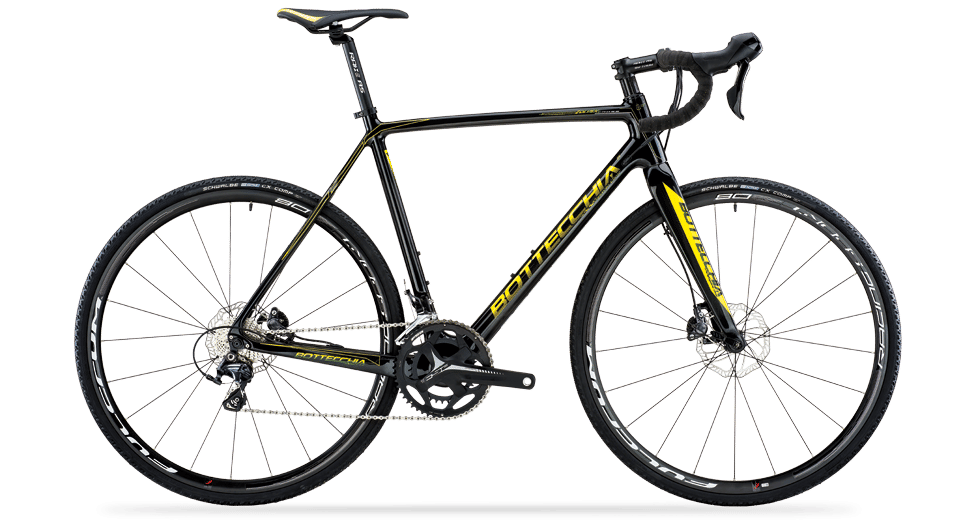

2017 Bottecchia Zolder geometry
Full frame geometry for the 2017 Bottecchia Zolder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 510 | 378 | 74.5 | 70.5 | 100 | 510 | 480 | 425 |
| 52 | 537 | 385 | 74.5 | 71 | 125 | 535 | 520 | 425 |
| 54 | 548 | 387 | 74 | 71 | 135 | 545 | 540 | 425 |
| 58 | 578 | 398 | 73.5 | 72 | 160 | 575 | 580 | 425 |
All measurements in millimetres unless marked (°) for angles.
