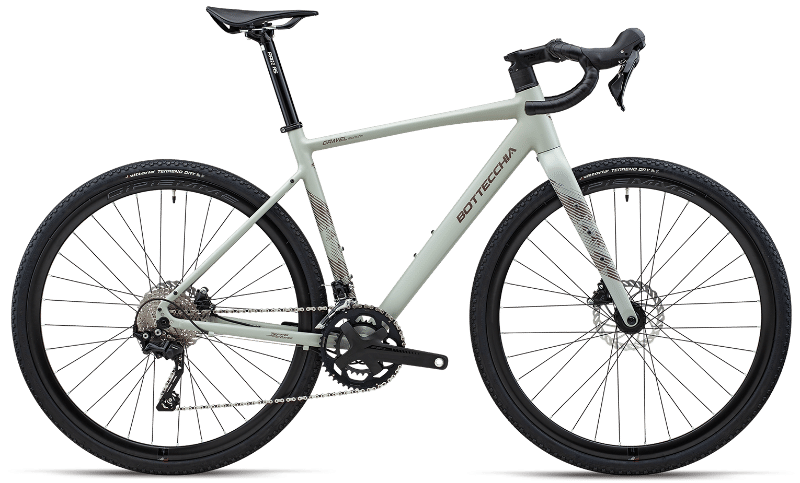

2026 Bottecchia Gravel Monster geometry
Full frame geometry for the 2026 Bottecchia Gravel Monster, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 44 | 527 | 360 | 74.5 | 70 | 110 | 505 | 440 | 432 |
| 48 | 539 | 366 | 74.5 | 70.5 | 120 | 515 | 480 | 432 |
| 51 | 560 | 370 | 74 | 71 | 140 | 530 | 510 | 432 |
| 54 | 580 | 377 | 73.5 | 71.5 | 160 | 550 | 540 | 432 |
| 56 | 590 | 385 | 73.5 | 71.5 | 170 | 560 | 560 | 432 |
| 58 | 600 | 400 | 72.5 | 71.5 | 190 | 580 | 580 | 432 |
All measurements in millimetres unless marked (°) for angles.
