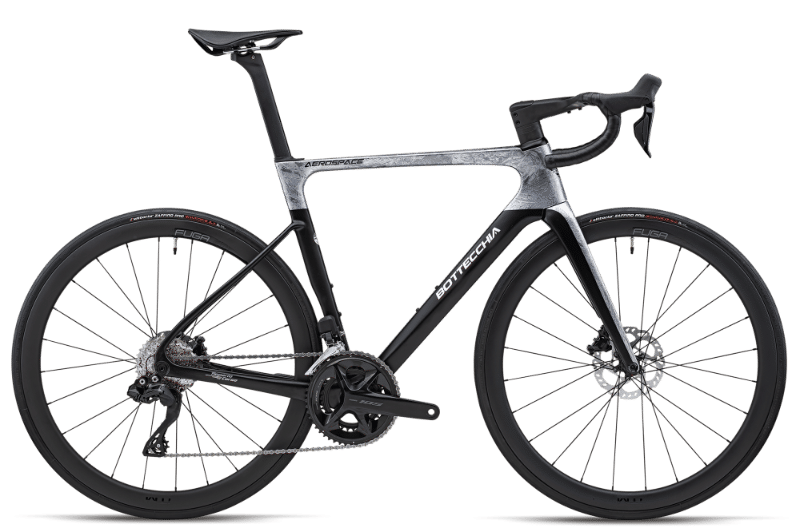

2026 Bottecchia Aerospace geometry
Full frame geometry for the 2026 Bottecchia Aerospace, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 47 | 505 | 365 | 74.5 | 71.5 | 95 | 505 | 470 | 408 |
| 49 | 515 | 372 | 74.5 | 71.5 | 105 | 515 | 490 | 408 |
| 51 | 517 | 382 | 74 | 72 | 108 | 530 | 510 | 408 |
| 53 | 538 | 396 | 74 | 72 | 130 | 550 | 530 | 408 |
| 55 | 547 | 405 | 73.5 | 72.5 | 140 | 565 | 550 | 408 |
| 57 | 558 | 409 | 73 | 72.5 | 150 | 580 | 570 | 408 |
All measurements in millimetres unless marked (°) for angles.
