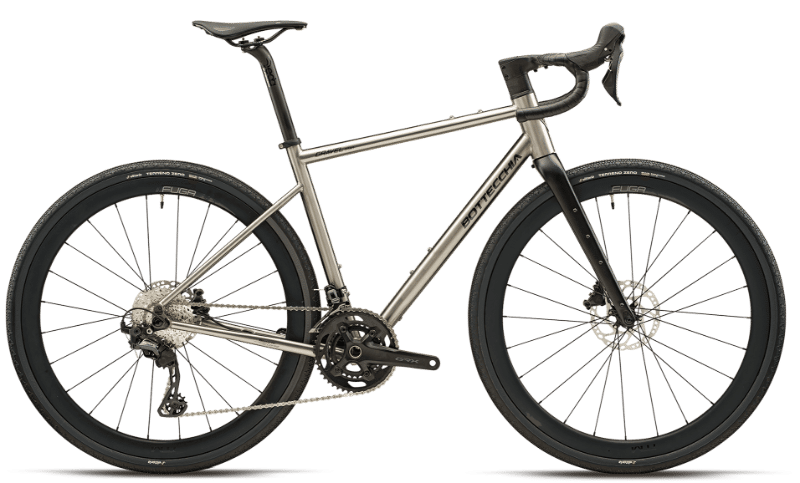

2026 Bottecchia Gravel Titan geometry
Full frame geometry for the 2026 Bottecchia Gravel Titan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 45 | 541 | 369 | 74 | 70.5 | 125 | 517 | 425 | 435 |
| 49 | 556 | 370 | 73.5 | 71 | 140 | 538 | 460 | 435 |
| 52 | 568 | 372 | 73 | 72 | 150 | 551 | 490 | 435 |
| 54 | 589 | 374 | 72.5 | 72 | 170 | 571 | 505 | 435 |
| 56 | 606 | 379 | 72.5 | 72.5 | 190 | 588 | 525 | 435 |
All measurements in millimetres unless marked (°) for angles.
