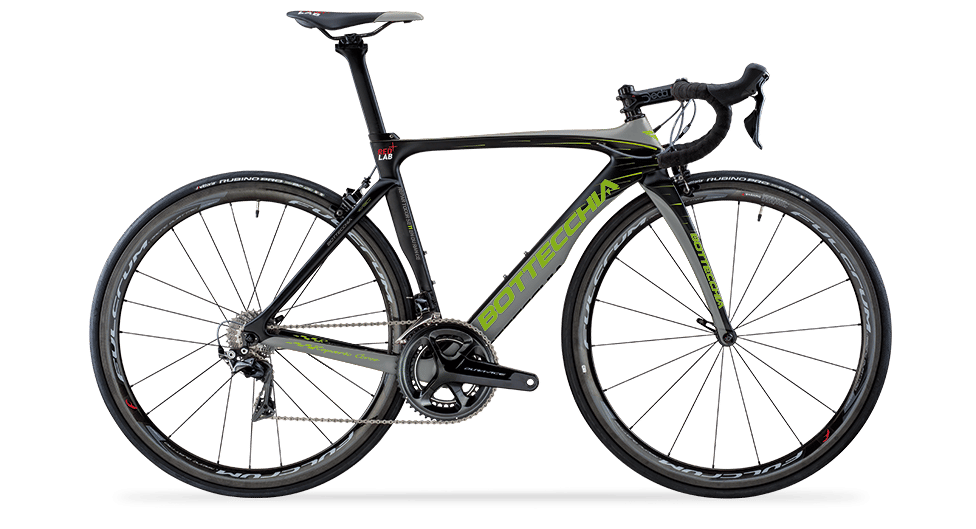

2018 Bottecchia T1 Endurance geometry
Full frame geometry for the 2018 Bottecchia T1 Endurance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 47 | 513 | 383 | 75.5 | 72.5 | 100 | 516 | 470 | 405 |
| 51 | 535 | 388 | 75 | 73.5 | 130 | 531 | 510 | 405 |
| 53 | 554 | 388 | 74.5 | 73.5 | 150 | 542 | 530 | 405 |
| 55 | 571 | 391 | 73.5 | 73 | 170 | 560 | 550 | 405 |
| 57 | 600 | 393 | 73 | 73 | 200 | 576 | 570 | 405 |
| 59 | 623 | 405 | 73 | 74 | 220 | 595 | 590 | 405 |
All measurements in millimetres unless marked (°) for angles.
