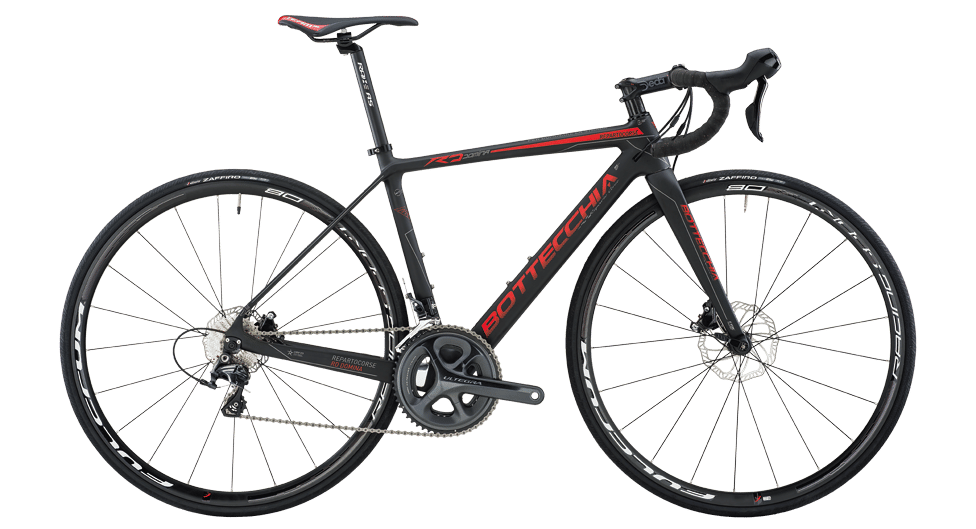

2018 Bottecchia RD Domina geometry
Full frame geometry for the 2018 Bottecchia RD Domina, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 47 | 507 | 374 | 74.5 | 71 | 110 | 515 | 470 | 415 |
| 50 | 519 | 380 | 74.5 | 71.5 | 120 | 523 | 500 | 415 |
| 53 | 542 | 383 | 73.5 | 72.5 | 140 | 530 | 530 | 415 |
| 55 | 557 | 390 | 73.5 | 72.8 | 155 | 555 | 550 | 417 |
| 57 | 579 | 398 | 73 | 73.2 | 175 | 575 | 570 | 417 |
All measurements in millimetres unless marked (°) for angles.
