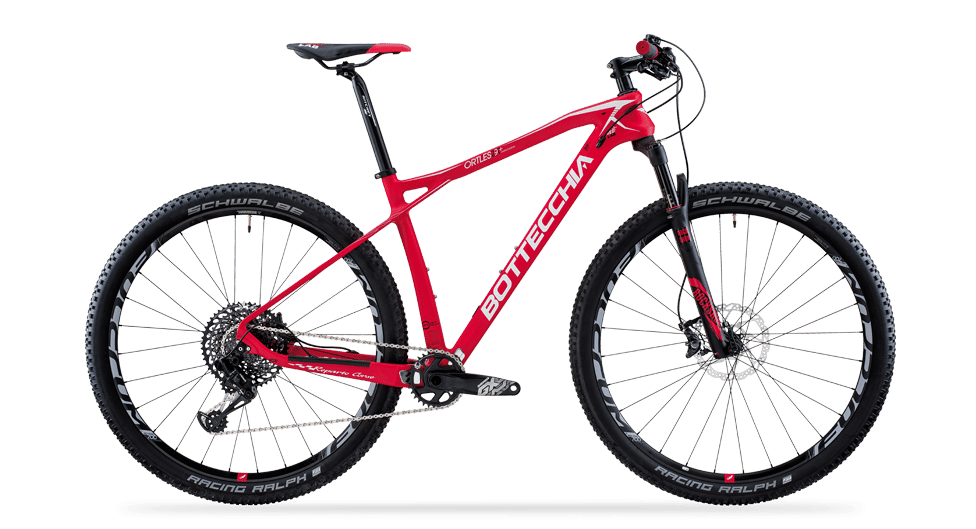

2018 Bottecchia Ortles 297 geometry
Full frame geometry for the 2018 Bottecchia Ortles 297, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 43 | 647 | 399 | 73 | 71 | 100 | 585 | 430 | 445 |
| 48 | 651 | 418 | 73 | 71 | 105 | 605 | 480 | 445 |
| 53 | 656 | 441 | 73 | 71 | 110 | 630 | 530 | 445 |
All measurements in millimetres unless marked (°) for angles.
