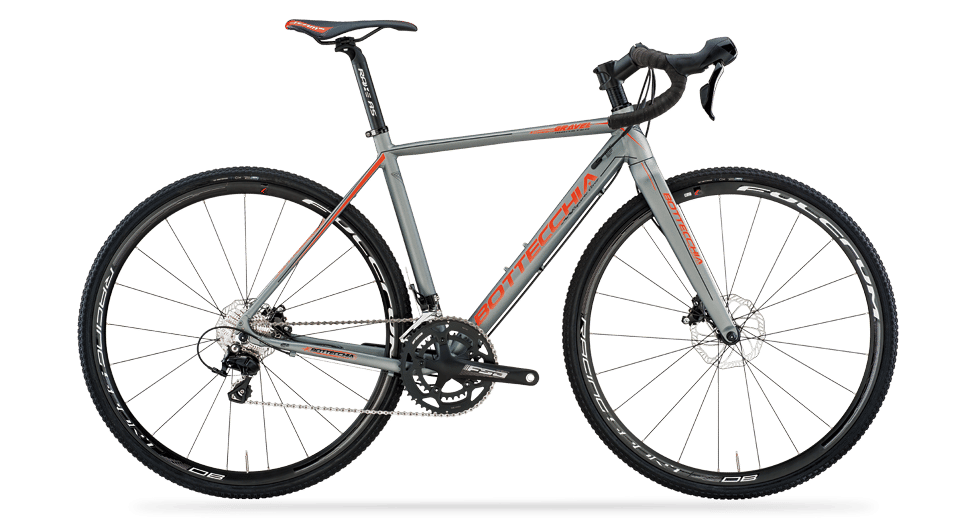

2017 Bottecchia Gravel geometry
Full frame geometry for the 2017 Bottecchia Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 500 | 357 | 72.5 | 69.5 | 105 | 510 | 480 | 420 |
| 52 | 520 | 366 | 72.5 | 69.5 | 120 | 530 | 520 | 420 |
| 54 | 550 | 375 | 72.5 | 69.5 | 130 | 549 | 540 | 420 |
| 58 | 603 | 400 | 72.5 | 72 | 180 | 590 | 580 | 420 |
All measurements in millimetres unless marked (°) for angles.
