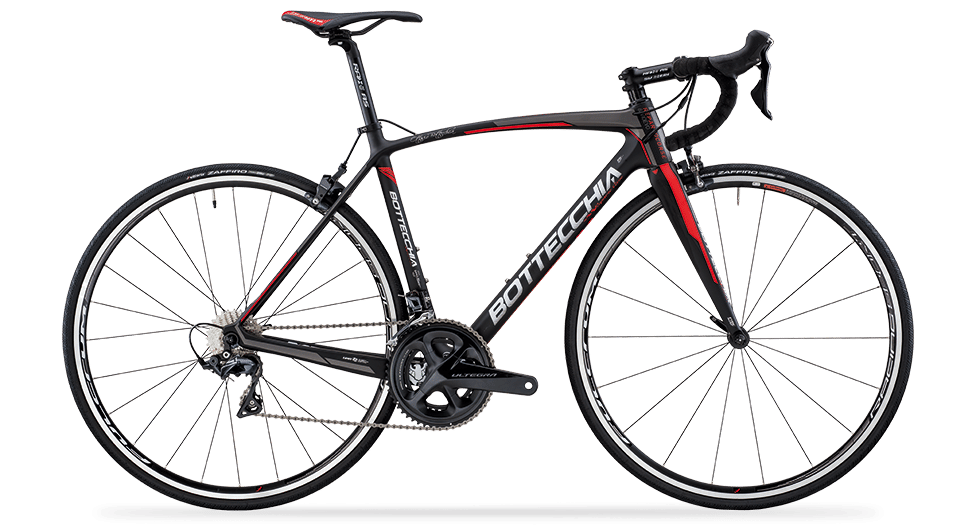

2018 Bottecchia 8Avio Evo geometry
Full frame geometry for the 2018 Bottecchia 8Avio Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 43 | 491 | 364 | 75.5 | 70.5 | 100 | 491 | 430 | 405 |
| 47 | 514 | 377 | 75.5 | 72.5 | 110 | 515 | 470 | 405 |
| 50 | 521 | 380 | 74.5 | 72.2 | 125 | 530 | 500 | 405 |
| 53 | 536 | 385 | 75.5 | 72.2 | 140 | 545 | 530 | 408 |
| 56 | 557 | 389 | 75.5 | 72.2 | 160 | 565 | 560 | 408 |
| 59 | 578 | 397 | 75.5 | 72.2 | 180 | 585 | 590 | 410 |
All measurements in millimetres unless marked (°) for angles.
