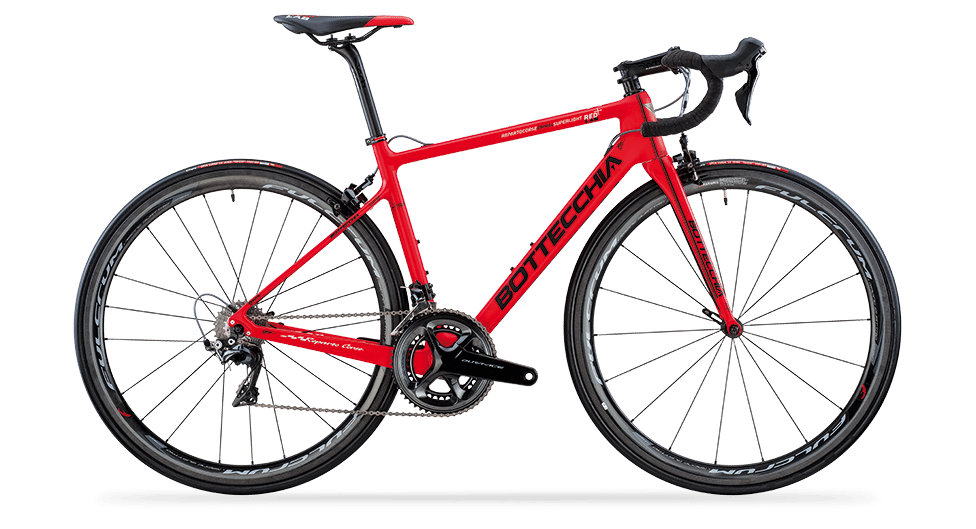

2018 Bottecchia EMME4 geometry
Full frame geometry for the 2018 Bottecchia EMME4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 44 | 511 | 377 | 74.5 | 71.5 | 115 | 520 | 440 | 410 |
| 47 | 534 | 382 | 73.6 | 72.5 | 135 | 540 | 470 | 410 |
| 51 | 555 | 385 | 73 | 73 | 155 | 555 | 510 | 410 |
| 54 | 570 | 395 | 73 | 73 | 170 | 570 | 540 | 410 |
| 57 | 589 | 404 | 72.5 | 73 | 190 | 590 | 570 | 410 |
All measurements in millimetres unless marked (°) for angles.
