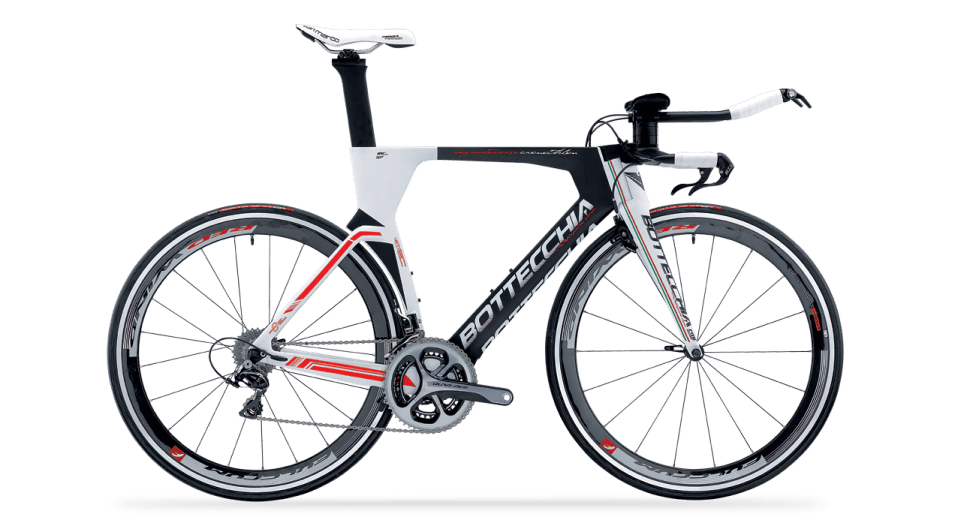

2016 Bottecchia Chronothlon geometry
Full frame geometry for the 2016 Bottecchia Chronothlon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 49 | 453 | 372 | 75 | 71 | 92 | 490 | 450 | 395 |
| 51 | 512 | 378 | 75 | 72.5 | 102 | 512 | 530 | 395 |
| 53 | 521 | 396 | 75 | 72.5 | 112 | 533 | 540 | 395 |
| 55 | 538 | 410 | 75 | 72.5 | 130 | 552 | 557 | 395 |
| 57 | 556 | 424 | 75 | 72.5 | 148 | 570 | 576 | 395 |
All measurements in millimetres unless marked (°) for angles.
