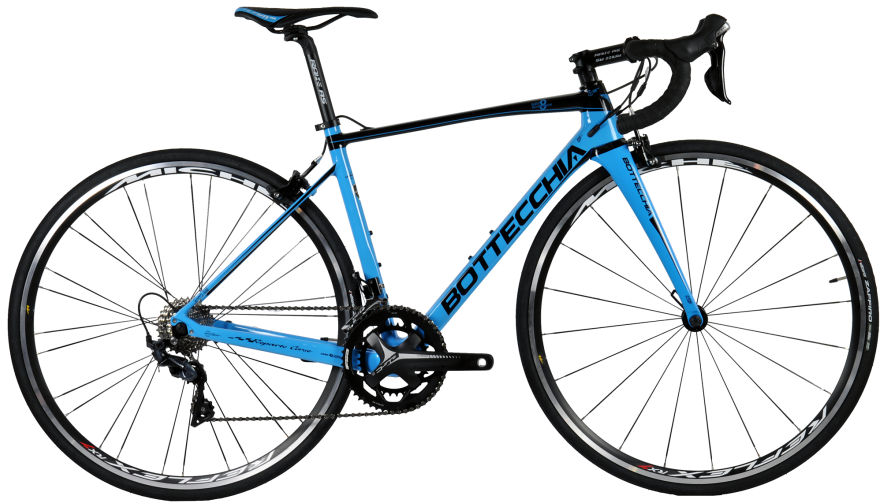

2018 Bottecchia 8avio Revolution geometry
Full frame geometry for the 2018 Bottecchia 8avio Revolution, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| 43 | 495 | 363 | 75.5 | 70.5 | 100 | 491 | 430 | 405 |
| 48 | 508 | 384 | 75.5 | 71.5 | 110 | 515 | 480 | 405 |
| 51 | 525 | 389 | 74.5 | 72.5 | 125 | 535 | 510 | 405 |
| 54 | 548 | 393 | 73.5 | 73.5 | 145 | 555 | 540 | 405 |
| 58 | 586 | 400 | 72.5 | 73.5 | 185 | 585 | 580 | 405 |
All measurements in millimetres unless marked (°) for angles.
