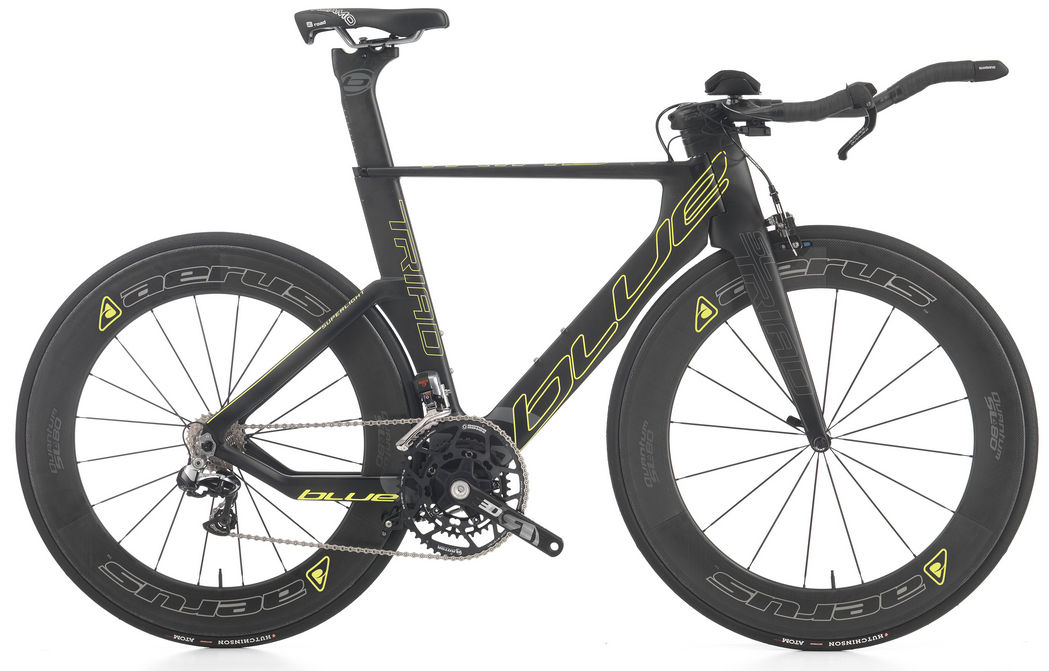

2013 Blue Triad SL geometry
Full frame geometry for the 2013 Blue Triad SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 503 | 375 | 76 | 71.5 | 85 | 500 | 500 | 761 | 70 | 565 | 405 | 960 | 45 |
| S | 517 | 381 | 76 | 73 | 95 | 510 | 510 | 775 | 70 | 559 | 405 | 954 | 45 |
| M | 536 | 401 | 76 | 73 | 115 | 535 | 535 | 795 | 70 | 590 | 405 | 985 | 45 |
| ML | 555 | 417 | 76 | 73 | 135 | 555 | 555 | 814 | 70 | 595 | 405 | 990 | 45 |
| L | 575 | 432 | 76 | 73 | 155 | 575 | 575 | 833 | 70 | 633 | 405 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
