2015 Blue Norcross Al geometry

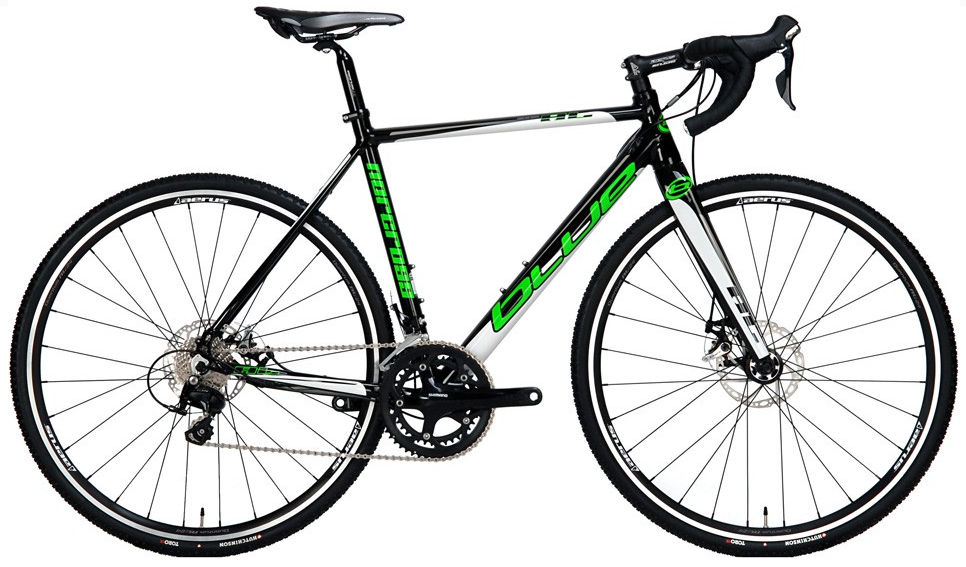

Name: 2015 Blue Norcross Al
Brand: Blue

Full frame geometry for the 2015 Blue Norcross Al, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XS	523	360	74.5	71	100	505	438	749	65	425	985	45
S	539	370	74.5	71.5	115	520	472	777	65	425	996	45
M	558	375	74	71.5	135	535	492	801	65	425	1007	45
ML	579	388	73.5	72	155	560	530	826	65	425	1022	45
L	598	397	73	72	175	580	551	845	65	425	1037	45
XL	619	399	72.5	72.5	195	595	571	870	65	425	1041	45

All measurements in millimetres unless marked (°) for angles.
