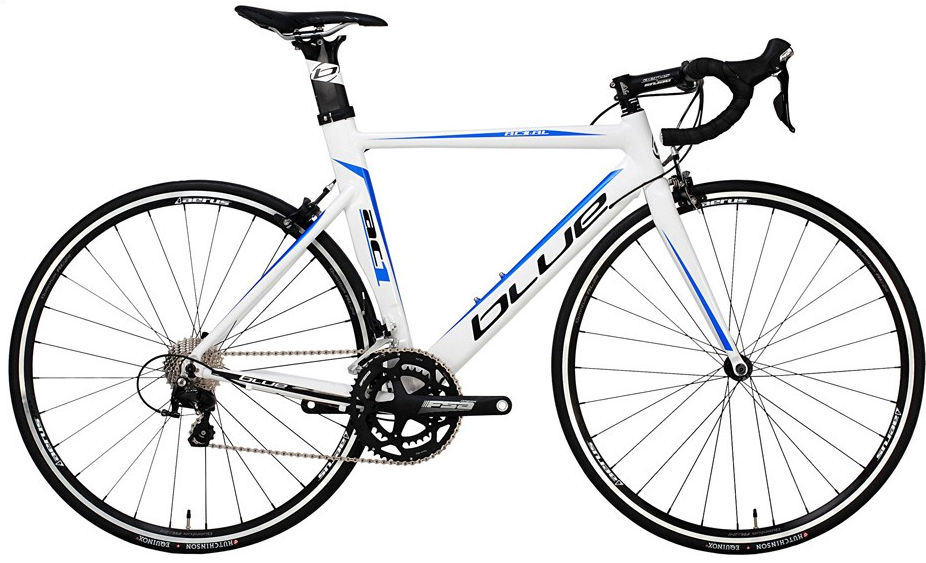

2015 Blue AC1 Al geometry

Name: 2015 Blue AC1 Al
Brand: Blue

Full frame geometry for the 2015 Blue AC1 Al, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
XS	485	370	75	70	90	485	470	70	383	43
S	495	382	75	71.5	96	505	510	70	383	43
M	525	405	75	72	125	535	540	70	383	43
ML	555	421	75	72	157	560	570	70	383	43
L	590	432	75	72.5	192	580	600	70	383	43
XL	596	445	75	72.5	205	595	610	70	383	43

All measurements in millimetres unless marked (°) for angles.
