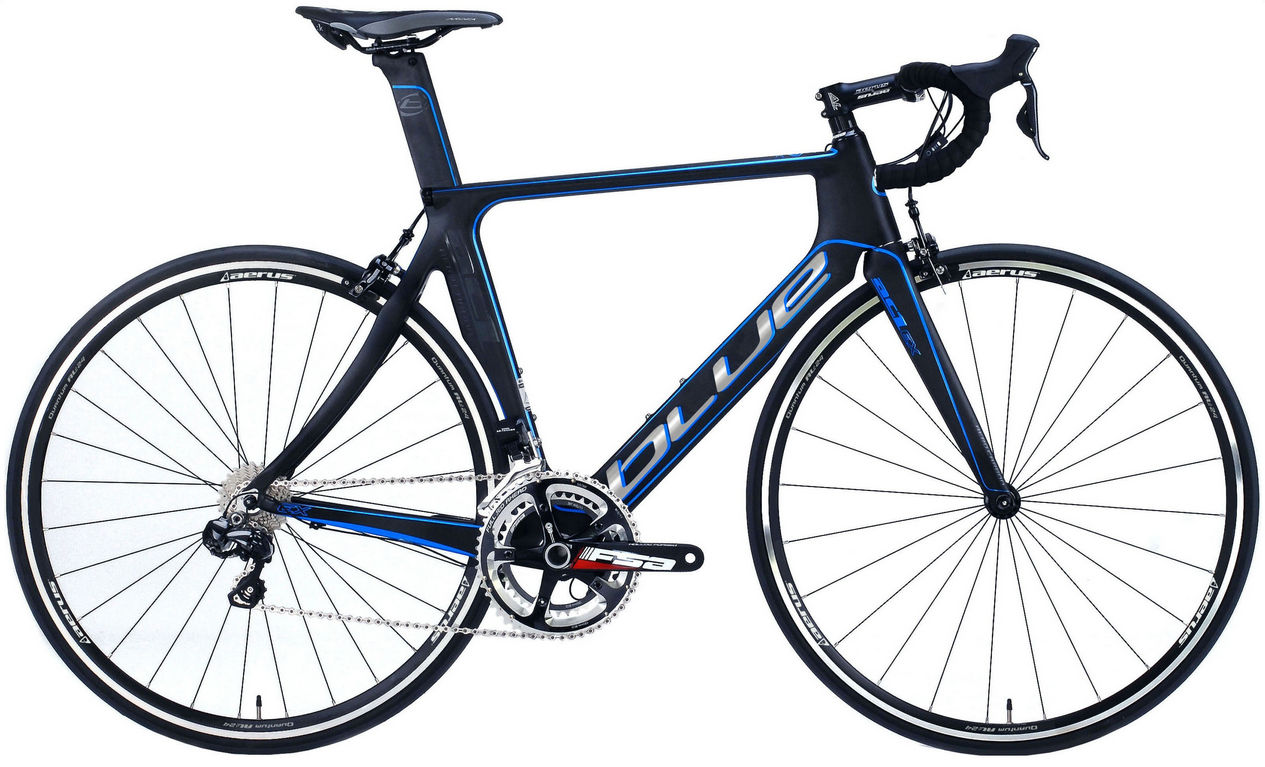

2015 Blue AC1 geometry

Name: 2015 Blue AC1
Brand: Blue

Full frame geometry for the 2015 Blue AC1, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XS	496	366	74.5	71.5	100	505	460	723	70	405	953	45
S	520	377	74	71.5	125	525	460	734	70	405	972	45
M	524	379	73.5	72	145	540	490	758	70	405	978	45
ML	557	389	73	72.5	160	560	520	790	70	405	989	45
L	570	400	72.5	72.5	175	580	550	801	70	405	1004	45
XL	590	413	72.5	72.5	195	600	580	825	70	405	1024	45

All measurements in millimetres unless marked (°) for angles.
