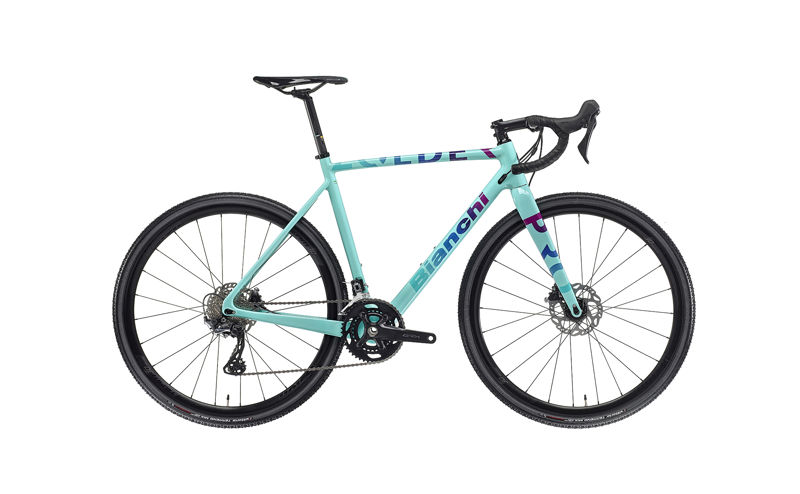

2022 Bianchi Zolder Pro geometry
Full frame geometry for the 2022 Bianchi Zolder Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 510 | 378 | 70.5 | 100 | 510 | 755 | 53 | 590 | 425 | 1009 | 45 |
| 50 | 529 | 383 | 70.5 | 115 | 525 | 750 | 58 | 600 | 425 | 1018 | 45 |
| 52 | 542 | 385 | 71 | 125 | 535 | 745 | 60 | 601 | 425 | 1019 | 45 |
| 54 | 554 | 386 | 71.5 | 135 | 545 | 740 | 60 | 602 | 425 | 1020 | 45 |
| 56 | 569 | 391 | 72 | 145 | 560 | 735 | 62 | 606 | 425 | 1024 | 45 |
| 58 | 583 | 396 | 72.5 | 160 | 575 | 730 | 62 | 611 | 425 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
