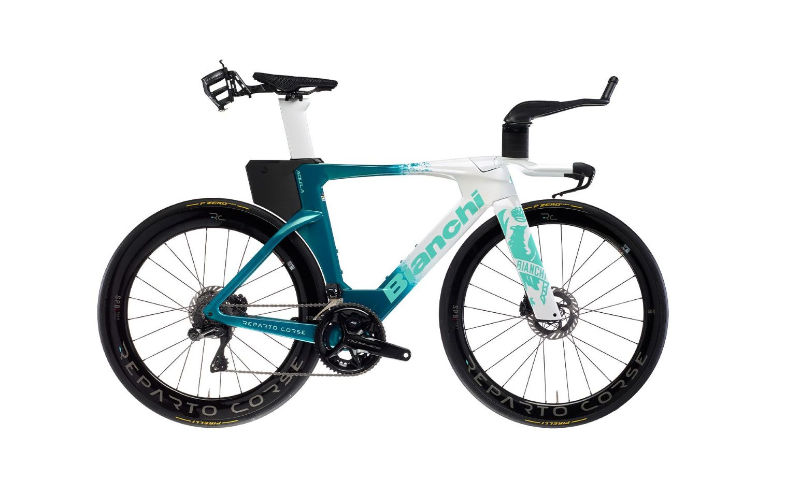

2026 Bianchi Aquila RC geometry
Full frame geometry for the 2026 Bianchi Aquila RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 402 | 77.5 | 72 | 75 | 510 | 510 | 75 | 410 | 986 | 45 |
| M | 610 | 420 | 77.5 | 72 | 90 | 535 | 530 | 75 | 410 | 1008.5 | 45 |
| L | 638 | 440 | 77.5 | 72 | 115 | 556 | 560 | 75 | 410 | 1036 | 45 |
All measurements in millimetres unless marked (°) for angles.
