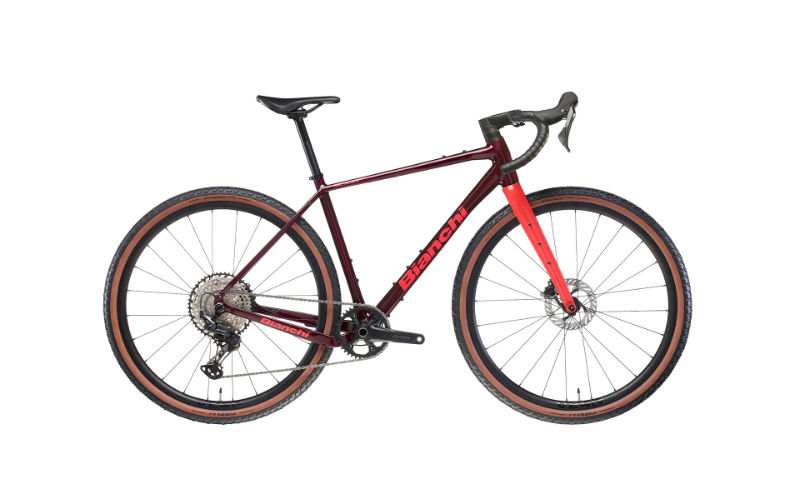

2026 Bianchi Arcadex AL geometry
Full frame geometry for the 2026 Bianchi Arcadex AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 389 | 74.5 | 70.5 | 100 | 537 | 410 | 75 | 608 | 430 | 1027 | 48 |
| SM | 556 | 396 | 75 | 70.5 | 120 | 554 | 450 | 75 | 622 | 430 | 1041 | 48 |
| MD | 576 | 404 | 73.5 | 71 | 140 | 573 | 490 | 75 | 632 | 435 | 1056 | 48 |
| LG | 597 | 413 | 73.5 | 71.5 | 160 | 584 | 520 | 75 | 643 | 435 | 1067 | 48 |
| XL | 616 | 423 | 73 | 71.5 | 180 | 610 | 550 | 75 | 659 | 435 | 1083 | 48 |
All measurements in millimetres unless marked (°) for angles.
