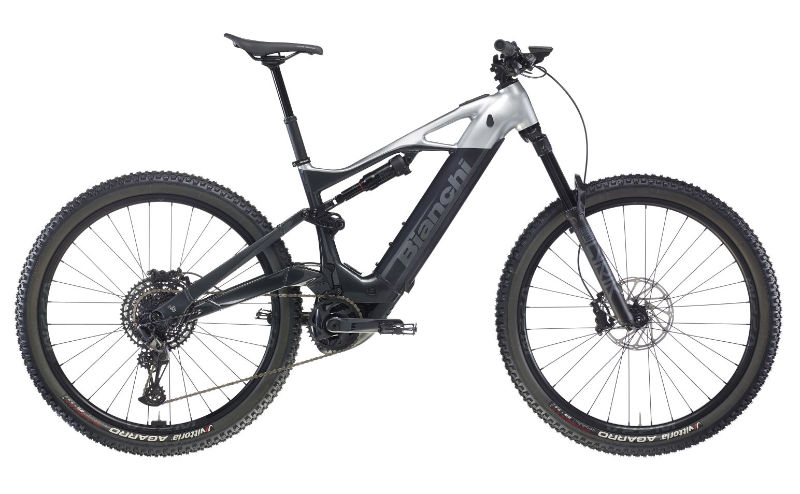

2026 Bianchi E-Vertic FX geometry
Full frame geometry for the 2026 Bianchi E-Vertic FX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 623 | 467 | 77 | 64.5 | 120 | 611 | 437.5 | 25 | 801 | 461 | 1261 | 44 |
| S | 623 | 445 | 77 | 64.5 | 120 | 589 | 400 | 25 | 779 | 461 | 1239 | 44 |
| L | 632 | 490 | 77 | 64.5 | 130 | 636 | 480 | 25 | 829 | 461 | 1288 | 44 |
| XL | 645 | 510 | 77 | 64.5 | 145 | 659 | 530 | 25 | 855 | 461 | 1315 | 44 |
All measurements in millimetres unless marked (°) for angles.
