2020 Bianchi · R

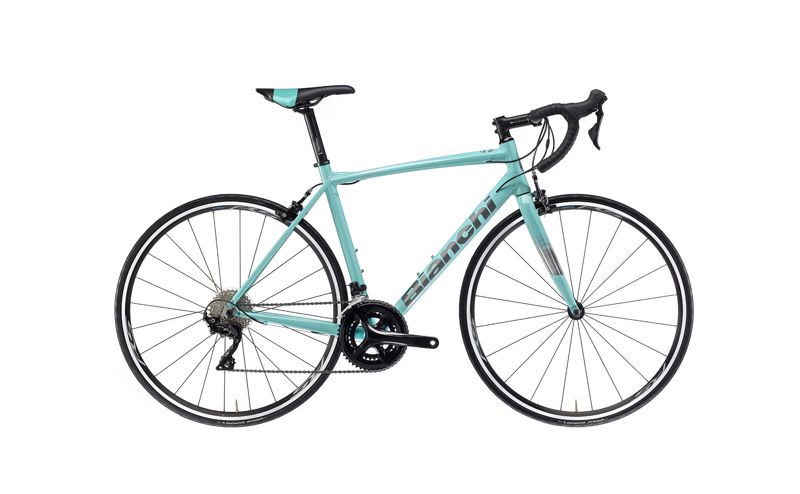

2020 Bianchi Via Nirone geometry
Full frame geometry for the 2020 Bianchi Via Nirone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 508 | 371 | 75 | 70.5 | 120 | 510 | 420 | 58 | 406 | 578 |
| 46 | 515 | 375 | 74.5 | 71 | 125 | 520 | 440 | 58 | 408 | 580 |
| 50 | 531 | 376 | 74.5 | 71.5 | 130 | 525 | 470 | 68 | 408 | 580 |
| 53 | 546 | 377 | 74 | 71.5 | 145 | 535 | 500 | 68 | 408 | 585 |
| 55 | 557 | 384 | 73.5 | 72 | 155 | 550 | 520 | 68 | 410 | 592 |
| 57 | 576 | 388 | 73.5 | 72 | 175 | 560 | 540 | 68 | 410 | 602 |
| 59 | 587 | 395 | 73 | 72.5 | 185 | 575 | 560 | 68 | 410 | 607 |
| 61 | 611 | 392 | 72.5 | 72.5 | 210 | 585 | 580 | 68 | 412 | 612 |
| 63 | 622 | 399 | 72.5 | 73 | 220 | 595 | 600 | 68 | 412 | 617 |
All measurements in millimetres unless marked (°) for angles.
