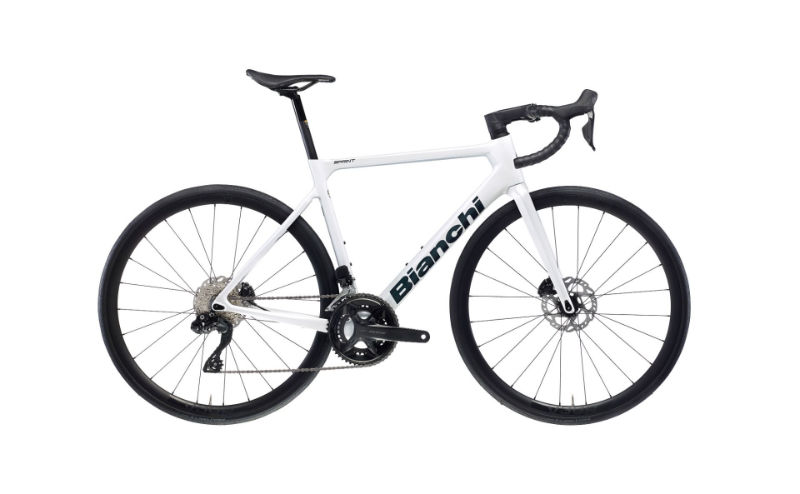

2026 Bianchi Sprint geometry
Full frame geometry for the 2026 Bianchi Sprint, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 497 | 377 | 74.5 | 70.5 | 105 | 420 | 60 | 580 | 410 | 982 | 43 |
| 50 | 505 | 383 | 74.5 | 71.5 | 110 | 450 | 60 | 582 | 410 | 983 | 43 |
| 53 | 529 | 384 | 74 | 72 | 125 | 480 | 68 | 583 | 410 | 984 | 43 |
| 55 | 545 | 388 | 73.5 | 73 | 140 | 500 | 68 | 588 | 413 | 991 | 43 |
| 57 | 561 | 393 | 73.5 | 73 | 155 | 520 | 68 | 593 | 413 | 996 | 43 |
| 59 | 580 | 396 | 73 | 73 | 175 | 540 | 68 | 603 | 413 | 1006 | 43 |
| 61 | 599 | 397 | 72.5 | 73 | 195 | 560 | 68 | 607 | 415 | 1012 | 43 |
All measurements in millimetres unless marked (°) for angles.
