2024 Bianchi · RD

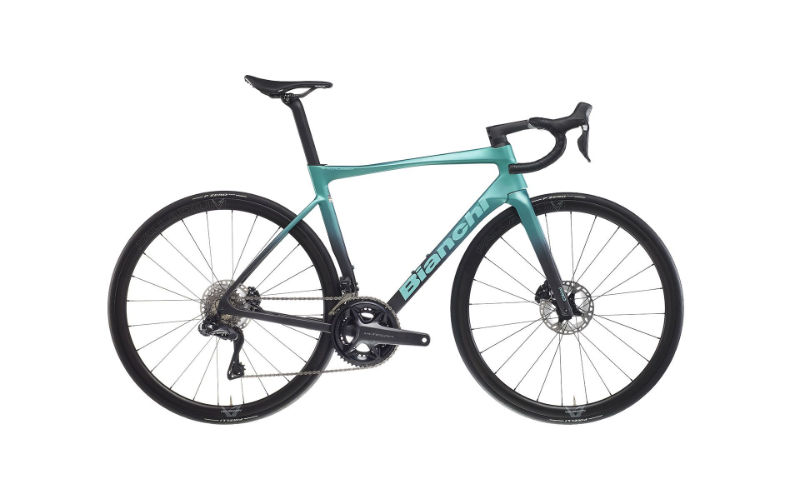

2024 Bianchi Specialissima Pro geometry
Full frame geometry for the 2024 Bianchi Specialissima Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 470 | 486 | 379 | 74.5 | 70.5 | 100 | 514 | 420 | 58 | 579 | 410 | 982 | 43 |
| 500 | 494 | 387 | 74.5 | 71.5 | 105 | 524 | 450 | 58 | 581 | 410 | 983 | 43 |
| 530 | 520 | 386 | 74 | 72 | 120 | 535 | 480 | 68 | 582 | 410 | 984 | 43 |
| 550 | 536 | 391 | 73.5 | 72.5 | 135 | 550 | 500 | 68 | 588 | 410 | 988 | 43 |
| 570 | 552 | 397 | 73.5 | 73 | 150 | 560 | 520 | 68 | 593 | 412 | 996 | 43 |
| 590 | 571 | 400 | 73 | 73 | 170 | 575 | 540 | 68 | 603 | 412 | 1005 | 43 |
All measurements in millimetres unless marked (°) for angles.
