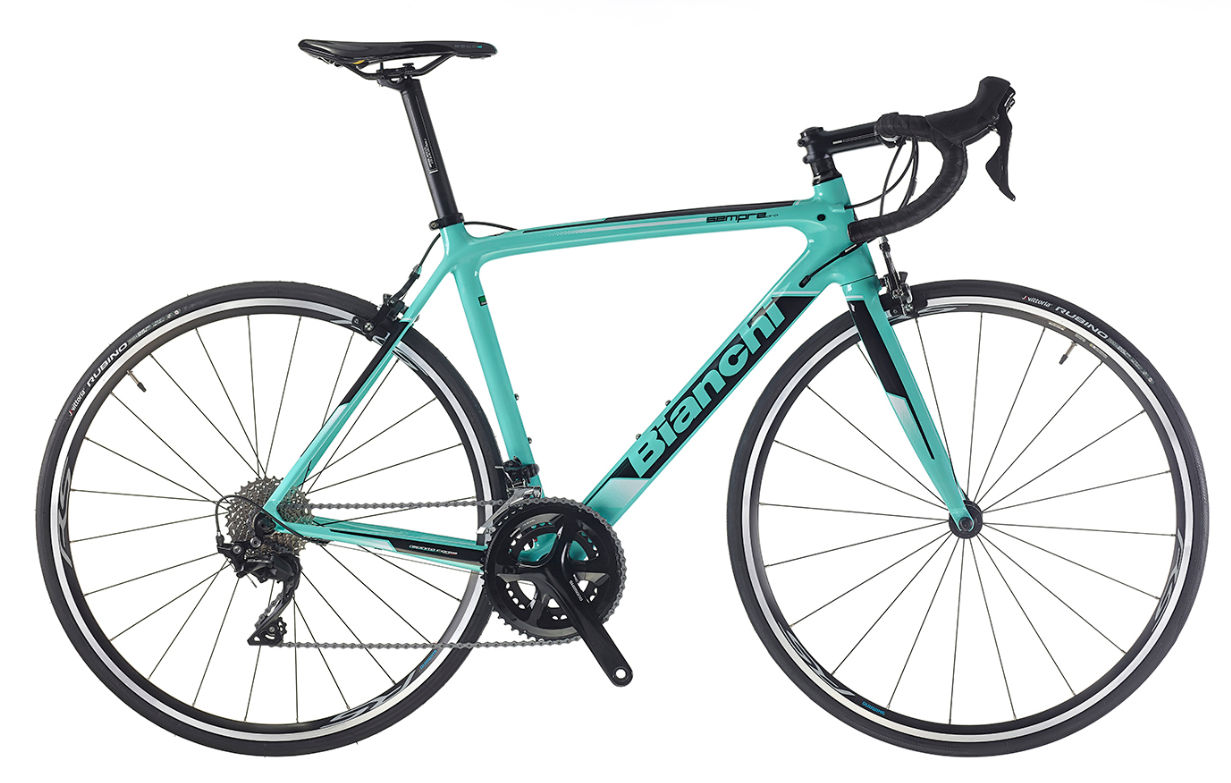

2019 Bianchi Sempre Pro geometry
Full frame geometry for the 2019 Bianchi Sempre Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 495 | 375 | 74.5 | 70.5 | 110 | 515 | 440 | 58 | 578 | 403 |
| 50 | 502 | 382 | 74.5 | 71 | 115 | 525 | 470 | 58 | 583 | 405 |
| 53 | 528 | 382 | 74 | 71.5 | 130 | 535 | 500 | 68 | 585 | 406 |
| 55 | 545 | 388 | 73.5 | 72.5 | 145 | 550 | 520 | 68 | 587 | 408 |
| 57 | 561 | 393 | 73.5 | 73 | 160 | 560 | 540 | 68 | 593 | 408 |
| 59 | 582 | 397 | 73 | 73.5 | 180 | 575 | 560 | 68 | 598 | 410 |
| 61 | 601 | 397 | 72.5 | 73.5 | 200 | 585 | 580 | 68 | 603 | 410 |
All measurements in millimetres unless marked (°) for angles.
