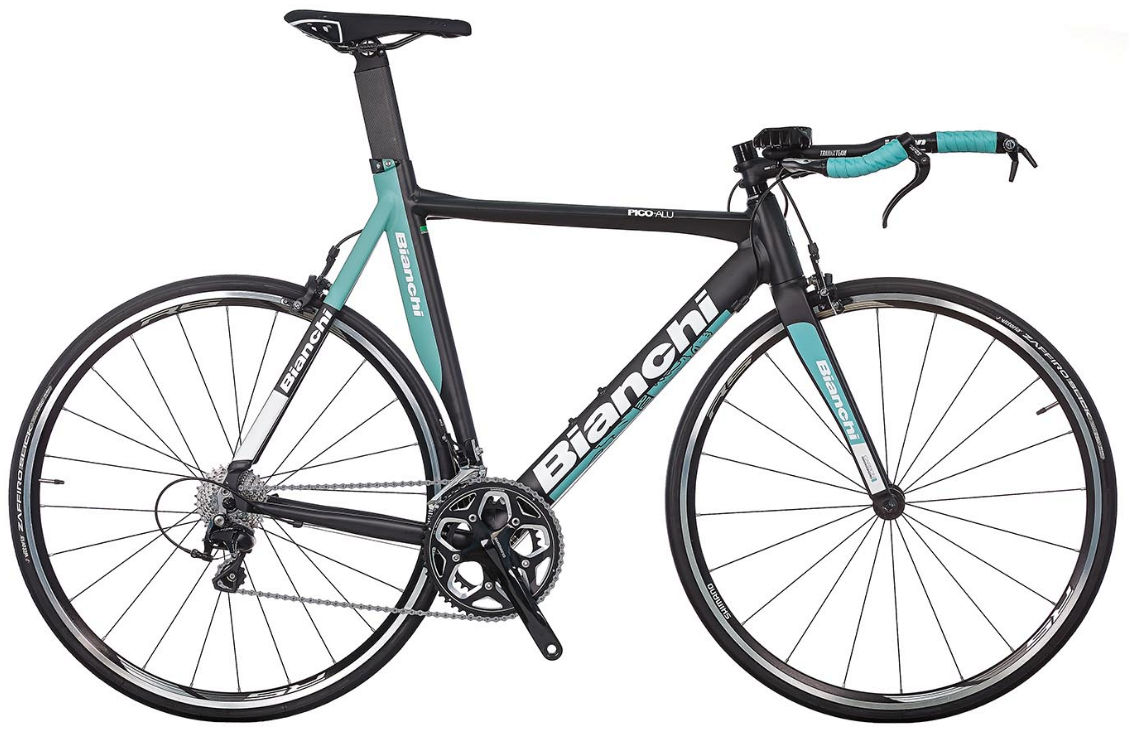

2017 Bianchi Pico Alu geometry
Full frame geometry for the 2017 Bianchi Pico Alu, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 504 | 386 | 76 | 71.5 | 105 | 560 | 801 | 68 | 581 | 398 | 969 |
| 53 | 515 | 394 | 76 | 72 | 115 | 580 | 817 | 68 | 588 | 398 | 976 |
| 55 | 524 | 401 | 76 | 72 | 125 | 600 | 831 | 68 | 599 | 398 | 987 |
| 57 | 536 | 409 | 76 | 72.5 | 135 | 620 | 848 | 68 | 605 | 398 | 993 |
| 59 | 546 | 422 | 76 | 73 | 145 | 640 | 863 | 68 | 616 | 398 | 1004 |
| 61 | 566 | 427 | 76 | 73 | 165 | 660 | 883 | 68 | 627 | 398 | 1015 |
All measurements in millimetres unless marked (°) for angles.
