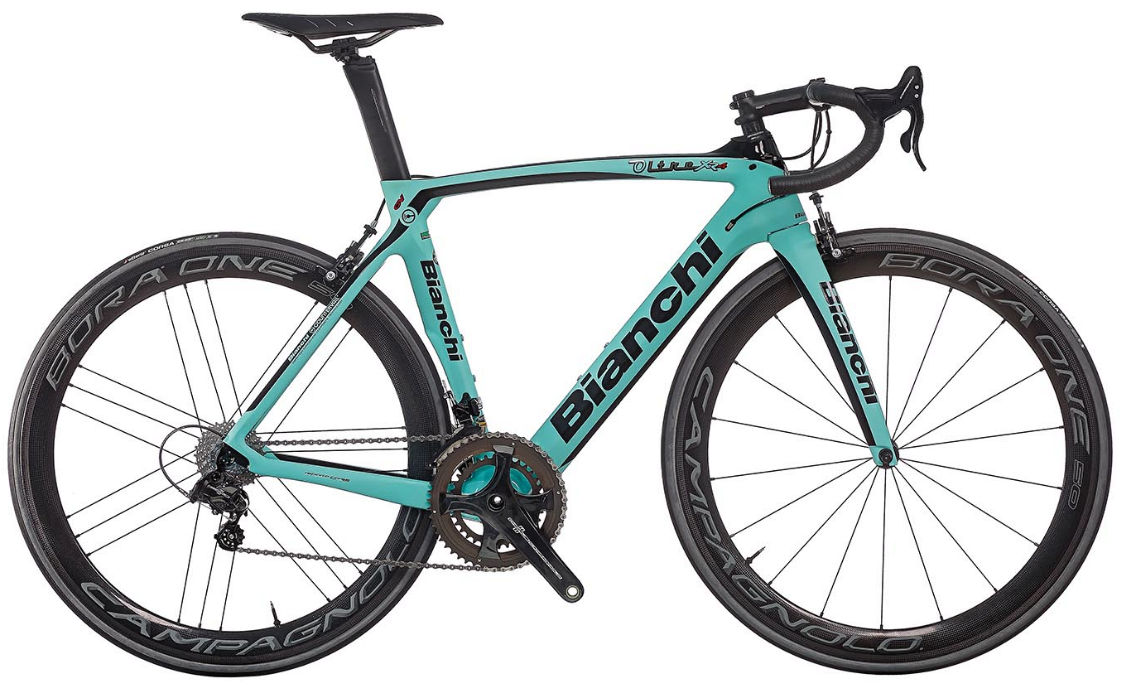

2017 Bianchi Oltre XR4 geometry
Full frame geometry for the 2017 Bianchi Oltre XR4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 490 | 377 | 74.5 | 70.5 | 105 | 515 | 420 | 733 | 58 | 579 | 400 | 972 |
| 50 | 499 | 384 | 74.5 | 71.5 | 110 | 525 | 450 | 753 | 58 | 581 | 400 | 974 |
| 53 | 525 | 385 | 74 | 72 | 125 | 535 | 480 | 772 | 68 | 582 | 406 | 978 |
| 55 | 541 | 390 | 73.5 | 72.5 | 140 | 550 | 500 | 791 | 68 | 588 | 407 | 985 |
| 57 | 557 | 395 | 73.5 | 73 | 155 | 560 | 520 | 810 | 68 | 593 | 407 | 990 |
| 59 | 576 | 398 | 73 | 73 | 175 | 575 | 540 | 830 | 68 | 603 | 409 | 1002 |
| 61 | 595 | 399 | 72.5 | 73 | 195 | 585 | 560 | 851 | 68 | 607 | 411 | 1009 |
All measurements in millimetres unless marked (°) for angles.
