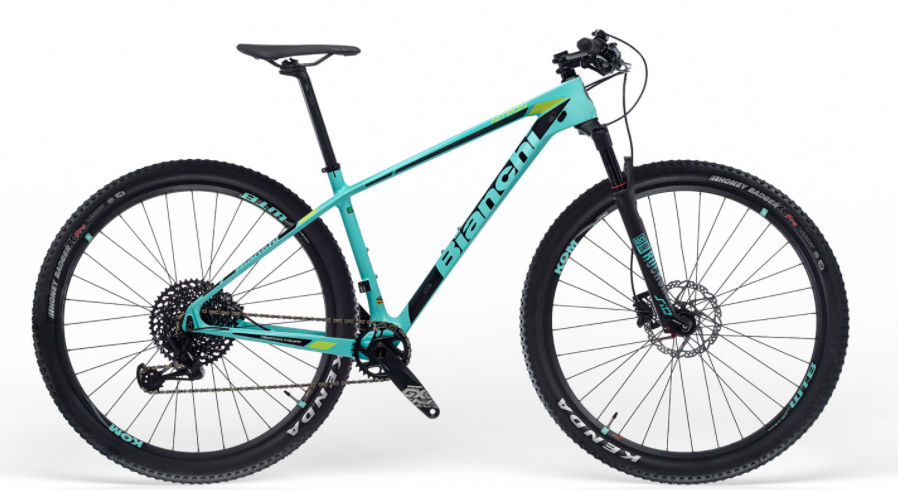

2018 Bianchi Nitron geometry
Full frame geometry for the 2018 Bianchi Nitron, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 601 | 397 | 74 | 69.5 | 90 | 570 | 380 | 429 | 1079 |
| M | 611 | 424 | 74 | 69.5 | 100 | 600 | 430 | 429 | 1110 |
| L | 620 | 447 | 74 | 69.5 | 110 | 625 | 480 | 429 | 1135 |
| XL | 629 | 464 | 74 | 69.5 | 120 | 645 | 530 | 429 | 1156 |
All measurements in millimetres unless marked (°) for angles.
