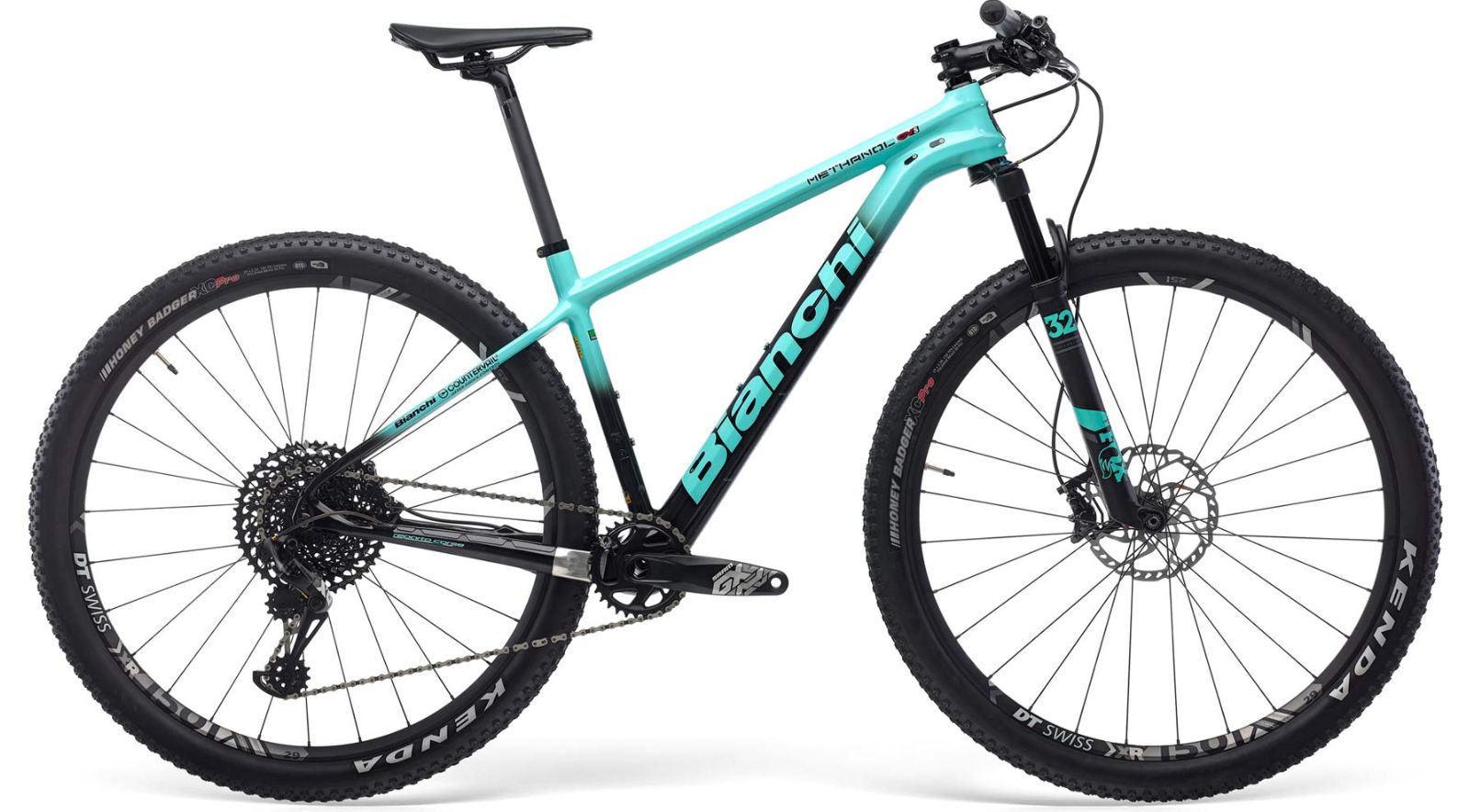

2019 Bianchi Methanol CV S geometry
Full frame geometry for the 2019 Bianchi Methanol CV S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 601 | 395 | 74 | 70 | 90 | 570 | 380 | 60 | 430 | 1067 | 46 |
| M | 615 | 410 | 74 | 71 | 100 | 580 | 430 | 60 | 430 | 1077 | 46 |
| L | 625 | 433 | 74 | 71 | 110 | 615 | 470 | 60 | 430 | 1102 | 46 |
| XL | 635 | 450 | 74 | 71 | 120 | 635 | 520 | 60 | 430 | 1122 | 46 |
All measurements in millimetres unless marked (°) for angles.
