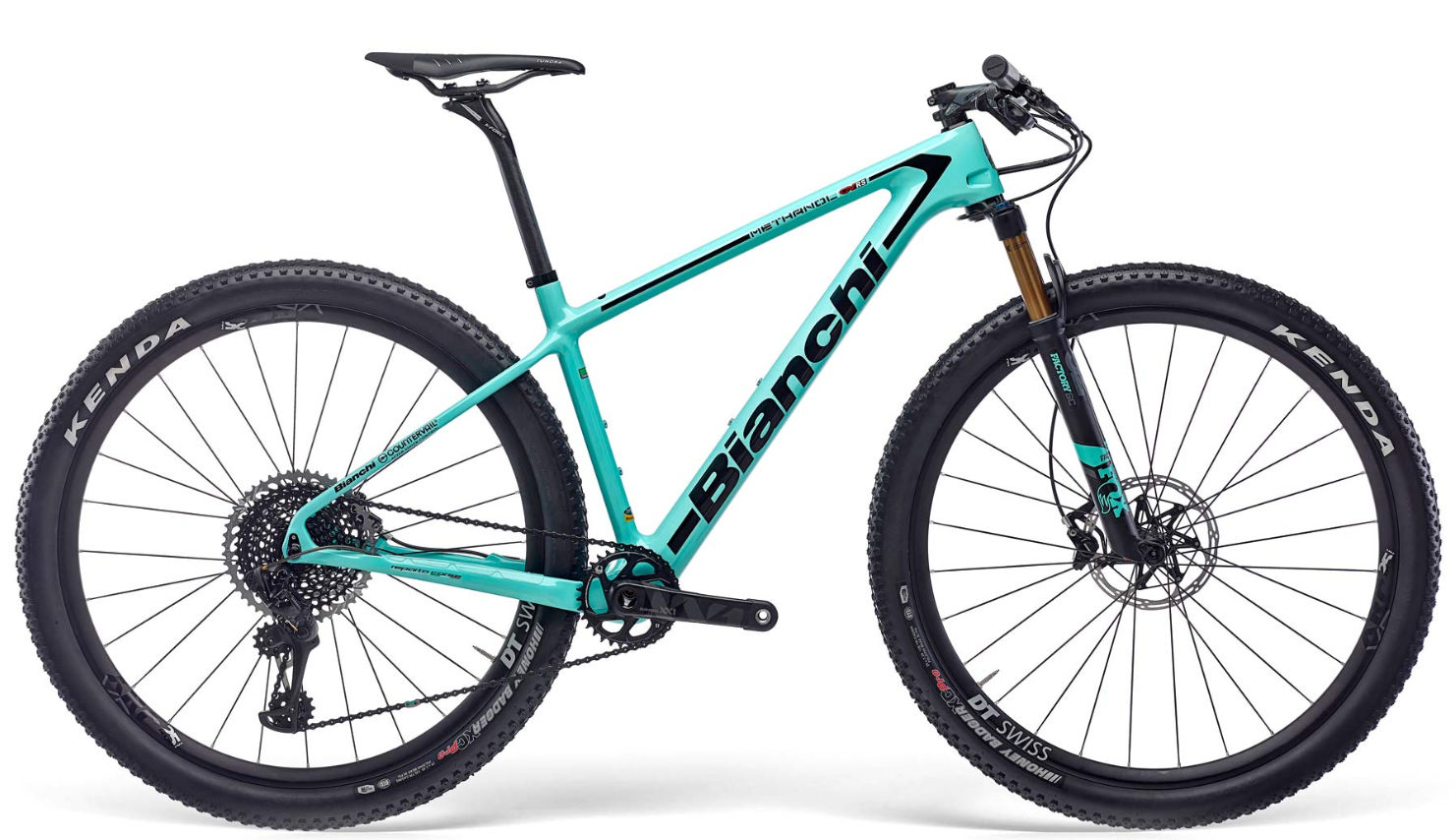

2019 Bianchi Methanol CV RS geometry
Full frame geometry for the 2019 Bianchi Methanol CV RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 401 | 74 | 69.5 | 90 | 575 | 380 | 60 | 430 | 1084 | 51 |
| M | 609 | 423 | 74 | 69.5 | 100 | 600 | 430 | 60 | 430 | 1109 | 51 |
| L | 618 | 445 | 74 | 69.5 | 110 | 625 | 470 | 60 | 430 | 1134 | 51 |
| XL | 627 | 467 | 74 | 69.5 | 120 | 650 | 520 | 60 | 430 | 1160 | 51 |
All measurements in millimetres unless marked (°) for angles.
