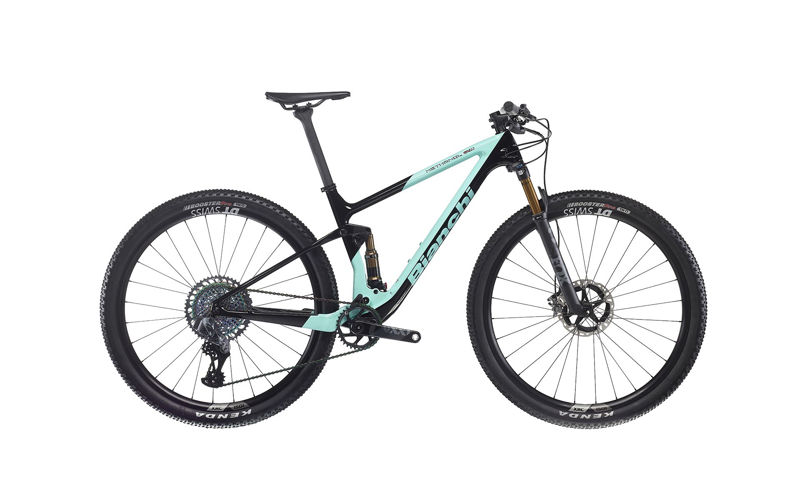

2023 Bianchi Methanol CV FS geometry
Full frame geometry for the 2023 Bianchi Methanol CV FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S 15" | 588 | 407 | 75 | 68.5 | 90 | 570 | 50 | 669 | 435 | 1099 | 44 |
| M 17" | 597 | 435 | 75 | 68.5 | 100 | 600 | 50 | 700 | 435 | 1130 | 44 |
| L 19" | 606 | 458 | 75 | 68.5 | 110 | 626 | 50 | 726 | 435 | 1157 | 44 |
| XL 21" | 616 | 475 | 75 | 68.5 | 120 | 646 | 50 | 747 | 435 | 1178 | 44 |
All measurements in millimetres unless marked (°) for angles.
